      Cessna
      Hawk XP pilot report
      by
Budd Davisson






                                    Just as surely as the swallows dead reckon
                                    their way back to Capistrano and as
                                    unerringly as the IRS computer spits out
                                    your name as being overdue in your tax
                                    return, the season for 172 pilot reports is
                                    sure to return. It is a yearly thing, a
                                    ritual, a known happening without which it
                                    would be felt that the entire world, even
                                    Wichita, was about to succumb to some sort
                                    of Andromeda Strain ending. For over a
                                    quarter of a century, if you include the
                                    170s, the annual debut of Cessna's newly
                                    refined models has been ac-companied by
                                    company press releases proclaiming ". . . an
                                    all new Skyhawk more horsepower, more speed,
                                    greater climb, higher ceiling. . . . " And
                                    the beat goes on . . . and on, and on. 1977
                                    continues the cycle.
                                    The lowly (or lofty,
                                    depending on your point of view) 172 Skyhawk
                                    is now such a cultural artefact that a model
                                    year without a 172 would be unthinkable
                                    Aviation's philosophy seems to be "They
                                    wouldn't dare not produce the Skyhawk."
                                    (Editor's note from the year 2000: Boy, are
                                    you in for a surprise!). It is simply the
                                    most popular four-place airplane in
                                    production today, and Cessna isn't about to
                                    bury the aluminium goose that annually lays
                                    a 14 carat egg
                                    1977 may not be the year
                                    that the 172 is transmogrified into an
                                    entirely different breed, but this is the
                                    year that the changes are far more
                                    substantial than a different paint scheme
                                    and unborn tortilla upholstering. 1977 is
                                    the year of the "XP" and to a lesser extent,
                                    of the Skyhawk/100. The Cess-na press
                                    releases call them ''. . . all new
                                    single-engine airplane . . and all new
                                    Skyhawk . . .", which may be stretching the
                                    facts a bit, but they are airplanes that
                                    step far enough ahead of their ancestors to
                                    warrant being called new generation Skyhawks.






                                    The Skyhawk XP (marketingese for Xtra-Performance,
                                    get it?) is by far the most significant of
                                    the two new airplanes, as It introduces
                                    higher horsepower and the constant speed
                                    propeller to the American 172 market for the
                                    second time in twenty years. The first time
                                    around in the '50s it was called the 175,
                                    the designation, which, according to some
                                    owners was almost exactly the number of
                                    hours they got between overhauls on the
                                    geared Continental. The Skyhawk XP, however,
                                    has a leg up on the older hot-rodding
                                    attempt. The USAF has been flying 172s with
                                    big motors and constant speed props for
                                    quite a number of years and the French
                                    Rheims Rocket, a licensed conversion on
                                    locally assembled air-frames, has been
                                    around for at least as long. The XP took
                                    some tips from both of those airframes and
                                    went on from there. Its 195 hp Continental
                                    10-360-K fuel injected engine is actually
                                    the well-known 210 hp Continental, but all
                                    the muffling required to meet FAA/EPA
                                    standards sucked up 15 horses.
                                    The Skyhawk/100---so-called
                                    be-cause it drinks 100 octane fuel-is a
                                    Skyhawk with an extra 10 horses (160 hp
                                    Lycoming 0-320-H2AD) and some minor
                                    cockpit/airframe changes that it shares with
                                    the XP. These include a rudder trim
                                    (optional on Sky-hawk/lOOs, standard on XPs),
                                    a flap switch with pre-selected detents for
                                    10, 20 and 40 degrees deflection, an

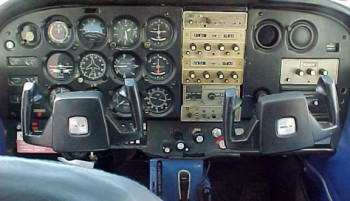

                                    instrument panel rehash that does away with
                                    some of the flimsy appearance of early
                                    airplanes, and a vernier mixture control.
                                    The throttles on both airplanes are still of
                                    the push-pull, non-vernier variety. In
                                    addition, the Skyhawk/100 had a slight .nose
                                    job, especially around the air intake to
                                    eliminate the need for running carb heat
                                    during heavy rain to prevent water ingestion
                                    The XP is going to be the
                                    airplane everybody wants to know about. 10
                                    extra ponies in a 172 isn't going to boggle
                                    anybody's mind, but a jump of 45 horsepower
                                    with a constant speed prop is something to
                                    sit down and think about. The empty weight
                                    is up by only 170 pounds so the power
                                    loading is down from about 14.5 lb/hp to
                                    13.1 lb/hp, a significant decrease and
                                    something which should point to like-wise
                                    increases in performance.
                                    The XP Hawk looks good on
                                    paper, but the only way to really find out
                                    is to go strap it on and have a go at it. As
                                    it happens, you can't just go out to your
                                    local dealer and grab an XP and go flying.
                                    First of all, the airplane is so new, that
                                    at the time of our flight evaluation they
                                    had actually finished only one production
                                    airplane. There were several prototype
                                    machines around, but only one airplane was
                                    available that was typical of what you would
                                    be likely to be buying. The other reason
                                    there was only one XP to be had was that
                                    Cessna was hit by a labour strike the same
                                    time the XPs were about to start flowing off
                                    the production line. By now, that problem
                                    should be long since solved. Anyway, the
                                    airplane we cornered at the Cessna
                                    transportation centre in Wichita was the
                                    very first of the new breed. There were no
                                    engineering gimmick's, no fine tuning, no
                                    nothing. Just an airplane that would
                                    eventually go into the distribution pipeline
                                    to be gobbled up by a lucky consumer.

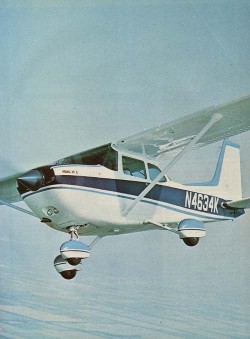

                                    Unless you are a real
                                    Skyhawk freak, you could waddle right past
                                    an XP and never know it (assuming you can't
                                    read "Skyhawk XP" emblazoned on the cowl).
                                    The cowl changes are very subtle. The
                                    downward flowing line of the Skyhawk cowl is
                                    replaced by a slightly curving one that runs
                                    more parallel to the longitudinal axis. The
                                    cowl flap needed to cool the big Continental
                                    is a single-door that mounts in the middle
                                    of the cowl's belly. It's easy to miss. The
                                    constant speed crop is nestled in a slightly
                                    larger version of a Skyhawk spinner and is
                                    painted flat black like the Skyhawk's. All
                                    in all, the XP is a sleeper, a muscle
                                    machine in sheep's clothing that won't draw
                                    any excited glances at your local aerodrome.


                                    After climbing
                                    in the cockpit, I had the feeling there
                                    should be a placard about a foot square that
                                    says "This is not a Skyhawk." It looks like
                                    a Sky-hawk, it feels like a Skyhawk,
                                    everything around tells you you're in a
                                    regular 172 - so you behave accordingly.
                                    Unfortunately, 172 habits won't even get the
                                    XP started. Starting procedure calls for
                                    pushing everything, throttle included, clear
                                    to the firewall and building up fuel
                                    pressure with the momentary boost pump
                                    switch prior to cranking. When cranking the
                                    engine over, the throttle is brought back
                                    slowly until the proper air/fuel ratio is
                                    hit and the engine starts. Then, in a very
                                    un-172 move, you have to double check to
                                    make certain the cowl flap is open.


                                    Although it's not
                                    noticeable from the inside, when the engine
                                    lights off, it has a very throaty exhaust
                                    tone that sounds as if it is equipped with
                                    augmentor tubes. It must have been a real
                                    bear before they were forced to throw all
                                    that muffling junk on it
                                    Cessna's airports are not
                                    exactly the places to try out an airplane's
                                    new performance; their pattern altitude is
                                    300 ft. because it lies directly under
                                    McConnell AFB's pattern. So after a gentle
                                    172-style takeoff, we struck out in search
                                    of greener pastures to play in.
                                    In general, what we did
                                    with the XP that day was snoop around
                                    looking for places to shoot touch and goes,
                                    checking cruise performance between periods
                                    of pogo-stick activity. We banged around on
                                    grass, gravel, pavement, asphalt and some
                                    stuff we couldn't identify. We cruised at
                                    300 ft. and 8000 ft., stalled and slow-flighted,
                                    timed speeds and gauged gallons and did
                                    everything else we could to find out what it
                                    was that made the XP different and exciting
                                    The first takeoff will
                                    convince you that this is no ordinary
                                    Skyhawk. As a matter of fact, you'd be far
                                    better off if you'd get your brain into
                                    Skylane gear because that's how it feels.
                                    Al-though we were fairly light, full tanks
                                    and two guys, the increase in acceleration
                                    over the 172 should stay relatively constant
                                    regardless of load. We were working in pools
                                    of our own sweat with an OAT of nearly 100°
                                    and the XP still showed the Xtra Performance
                                    Cessna was hoping it would. When you drop
                                    the hammer, the XP leaps forward and you
                                    have to gather your wits about you to make a
                                    smooth, lift -the- nose -wheel - off -first,
                                    takeoff. Most 172 drivers will have a
                                    tendency to run along nosewheel down and
                                    jerk it off from a three point position.




                                    The XP is much
                                    more a trim airplane than the 172 ever
                                    thought about being. On takeoff, if we left
                                    the trim indicator in the green, it took a
                                    determined amount of effort on the wheel to
                                    rotate and keep the nose up. Trimming out
                                    the elevator loads with two guys on board
                                    proved to be a bit tricky because the
                                    increased weight of the engine combined with
                                    our own weights to put the cg somewhere out
                                    in front of the spinner. If I trimmed far
                                    enough aft to lighten the stick loads on
                                    takeoff, I immediately had to push forward
                                    fairly hard after rotation to keep the nose
                                    down until I retrimmed it. With-out a doubt,
                                    the XP would probably handle much better
                                    with several screaming passengers (they
                                    always do that with me) strapped in the
                                    back.

                                    Climbout in the
                                    XP certainly showed why they put the rudder
                                    trim in it. Without it, your right leg
                                    develops a bad torque-cramp pronto. The trim
                                    mechanism is a lever at the bottom of the
                                    console near the floor that moves left and
                                    right and right out of a centred position.
                                    It has a peg on the bottom that engages
                                    holes, so you lift it up and move it a hole
                                    at a time. In climb, you need it as far
                                    right as possible. They need to structurally
                                    modify the engaging mechanism slightly
                                    because I noticed ours popped out of the
                                    hole once and it would be a simple thing to
                                    change.
                                    At the normal climb speed
                                    of 78 kts the nose is at a thoroughly
                                    uncomfortable angle and covers a healthy
                                    amount of sky. It gets about 850 fpm, or
                                    about 100-150 fpm more than a stock Hawk. I
                                    prefer to give away a little climb and go up
                                    at a flatter angle, so I usually climbed the
                                    XP about 100 mph, which still showed about
                                    550 on the VSI.

                                    When pushing over for cruise, I found it was
                                    best to close the cowl flap before doing
                                    anything else be-cause when that door is out
                                    in the wind it acts like a ramp and lifts
                                    the nose a bit, changing trim. At almost all
                                    power settings I found the cruise numbers to
                                    be slightly better than Cessna showed on
                                    their charts. This was probably because we
                                    were at least 500 pounds under gross. The
                                    best number we got was a timed, two-way
                                    average of 133 kt true at 8,000 feet, as
                                    opposed to Cessna's claims of 131 TAS.
                                    That's about 152 mph, which is a pretty
                                    substantial number for a foot dragging,
                                    dirty old airplane. That's 10 mph faster
                                    than at least one retractable we know of.

                                    The flight characteristics, including
                                    stalls, are traditional 172. Docile with a
                                    smallish amount of buffet, the stalls give a
                                    little nod and sluff-off straight ahead or
                                    back into level flight, if banked. The rate
                                    of sink goes up a little, but that's about
                                    it. And of course, the stall warning horn is
                                    strictly Cessna; when it goes off, you jump
                                    a couple inches off the seat.


                                    The XP is
                                    trim-critical in all flight regimes, but it
                                    gets especially important in making
                                    approaches. When slowing to approach speed,
                                    a sizable amount of trim is needed because
                                    the nose becomes extremely heavy. However,
                                    if you trim it up, you wind up having to
                                    trim it back down again when you run the
                                    flaps out. The 1.3 Vso approach speed is 60
                                    knots, so to keep from screwing around with
                                    the trim quite so much, I flew most of the
                                    pattern at 80 KIAS right through base leg.
                                    Then I'd start the flaps out, using them to
                                    both change my rate of descent and kill
                                    speed at the same time. The trim difference
                                    between cruise and full-flap approach speed
                                    is very little and it's only in transition
                                    that the trim becomes important.
                                    Again, because of our
                                    forward load-ing situation, if I flew the
                                    last portion of final with it trimmed
                                    neutral or slightly aft, the elevator
                                    pressures be-came extremely heavy during the
                                    flair. I flew the standard Skyhawk/100
                                    directly after flying the XP to verify this
                                    pressure build-up during flair and found
                                    none of this characteristic with the
                                    Hawk/100. It's undoubtedly a cg related
                                    characteristic and which can also be seen in
                                    flying a Cherokee 140, then a 180 and then a
                                    Cherokee 235, where there is a decided
                                    pressure build-up during flair in the bigger
                                    engine models. With full flaps in the XP, I
                                    found it difficult to land on the main gear
                                    and hold the nosewheel off during the
                                    roll-out. Possibly because of the heavier
                                    elevator pressures, the XP has a larger,
                                    more anatomically shaped control wheel then
                                    the Hawk/100.
                                    Both the XP and Hawk/100
                                    have airspeed indicators calibrated strictly
                                    in knots. There isn't a mph to be seen
                                    anywhere. This certainly causes no problems,
                                    except most of us aren't used to approaching
                                    at such low numbers; 60 KIAS looks awful
                                    low.
                                    While flying approaches,
                                    it seemed to me that the XP was much less
                                    speed stable at low airspeeds than the Hawk!
                                    100. I had to work to hold 60k, and with
                                    full flaps adding so much drag it was
                                    certainly easy to set up a deceleration
                                    that, if left unchecked, could cause severe
                                    problems. I personally feel the XP could
                                    almost be considered dangerous in this one
                                    tiny area. The airplane will be flown mostly
                                    by low-time 172 pilots, and if they are not
                                    precise in their attitude control, they
                                    could easily find themselves decelerating
                                    into a stall. However, with all that extra
                                    power, if a guy sees himself slow and nails
                                    the nose down, a short poke with the
                                    throttle will put everything back in fine
                                    shape. Also, the wing has a slight cuff on
                                    the leading edge which will go a long way
                                    towards keeping a guy out of trouble.
                                    Basically, the Hawk XP is
                                    available with the same variation of options
                                    as a standard Skyhawk/100. This includes a
                                    stripped airplane, (and we mean "stripped")
                                    called the XP, an XP "II" version with VFR/IFR
                                    capabilities, or a II with Nay Pac. The
                                    prices for the three different versions were
                                    announced as: Hawk XP, $29,950; XP II at
                                    $32,650; and XP II with Nav Pac, $36,500.
                                    It's a nice flying
                                    airplane in the tried and true 172 tradition
                                    . . . a machine for the short haul
                                    businessman or a Sunday pilot with his wife
                                    and kids. However, it is going to be up to
                                    the individual pilot to evaluate its
                                    advantages over the Skyhawk 100, which are
                                    slight, and decide whether it is worth the
                                    extra cost, both in acquisition and
                                    operating. It's faster and more powerful but
                                    whatever its nameplate, it's still a 172,
                                    through and through.




                               |
