Jodel DR100 Series
performance
and specifications
view a

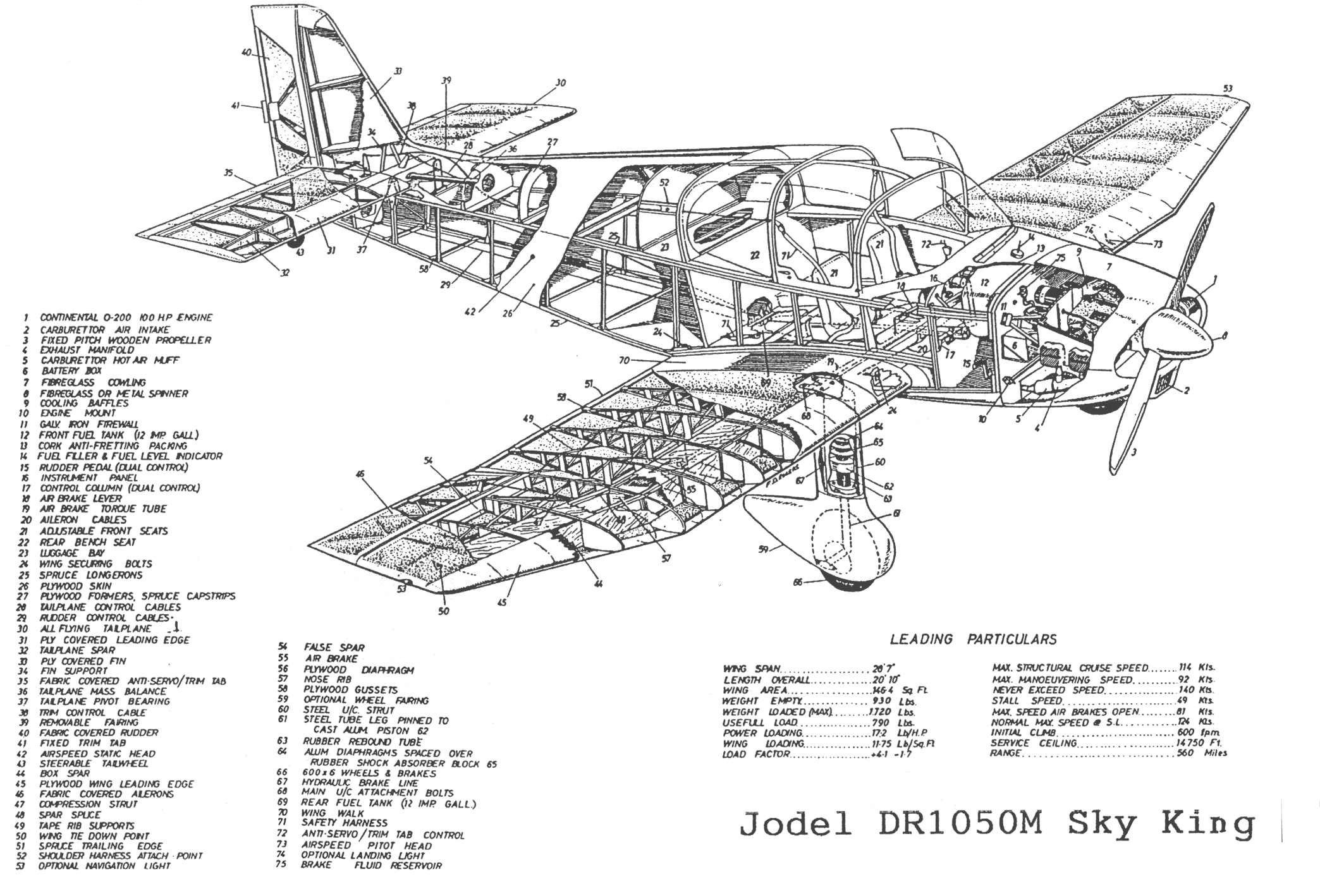

Jodel cutaway (opens in new window)
Specifications of DR 1050
|
Overall dimensions: |
|
|
|
Length |
21.4 ft |
6.5 m |
|
Height |
5.8 ft |
1.8 m |
|
Wing span |
28.8 ft |
8.72 m |
|
Weights and loadings: |
|
|
|
Empty weight (with oil) |
913 lbs |
415 kg |
|
Max Take off weight |
1650 lbs |
750 kg (780 kg M model) |
|
Max Landing weight |
1630 lbs |
740 kg (780 kg M model) |
|
Usefull load |
737 lbs |
335 kg |
|
Power loading |
16.5 lbs/hp |
7.5 kg/hp |
|
Fuel capacity (front) |
12 gal |
55 l |
|
Fuel capacity (rear) |
12 gal |
55 l |
|
Unusable fuel in aft tank |
1.5 gal |
6 l |
|
Max load factors |
+3.8 G |
-1.5 G |
|
Other specs: |
|
|
|
Gear |
Tailwheel |
|
|
Seats |
2+2 |
|
|
Controls |
Stick and rudder |
|
|
Material |
Wood and fabric |
|
|
Engine: |
|
|
|
DR100 |
95 hp |
Continental C90 |
|
DR105 |
95 hp |
Continental C90 |
|
DR1050 |
100 hp |
Continental/Rolls Royce O-200 |
|
DR1051 |
105 hp |
Potez 4E20 |
|
Fuel Continental |
80/87 octane |
Mogas permitted |
|
Fuel Potez |
100/130 octane |
Mogas not permitted |
|
Fuel burn (1050), 75% pwr |
5.5 gph |
21 liter/hour |
|
Fuel burn 55% pwr |
4 gph |
15 liter/hour |
|
Performance: |
|
|
|
Max speed, sea level |
130 mph |
210 km/h |
|
Cruise speed |
115 mph |
185 km/h |
|
Vne |
169 mph |
270 km/h |
|
Stall speed (indicated) |
55 mph |
88 km/h |
|
Climb rate |
600 fpm |
3 m/s |
|
Take-off roll |
980 ft |
300 m |
|
Landing roll |
800 ft |
250 m |
|
Range 75% power, no reserves |
575 nm |
1035 km (5.2 hours) |
|
Range 55% power, no reserves |
650 nm |
1170 km (6.9 hours) |
|
|
