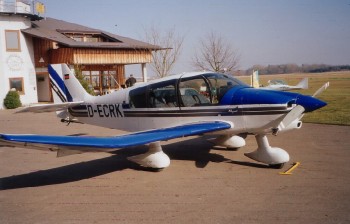

Robin Dauphin
2004 spec aircraft performance and specifications
The Robin Dauphins are renowned for their
excellent handling characteristics, ruggedness and
low operating costs. They are powered by a
reliable Lycoming 4-cylinder engine, with 120 hp
or 160 hp or the new JetA1 Centurion 1.7. Their
versatility makes them great favourites with
aero-clubs and flying-schools where they are
operated for basic training, navigation
instruction and instrument flying, or as
3-/4-seat, low cost, general purpose airplanes.
|
|
|
Robin 120 |
|
Robin 135 CDI
|
|
Robin140 |
|
|
|
|
|
|
|
|
|
|
|
2+2 |
|
2+2 |
|
4 |
|
Engine |
|
Lyco O-235,118hp |
|
Centurion 1.7
|
|
Lyco O-320, 160hp |
|
Hélice Propeller |
|
Sensenich fixed
pitch |
|
MT var. pitch
|
|
Sensenich fixed
pitch |
|
Gross weight |
|
1984 lb
|
|
2159 lb |
|
2204 lb
|
|
Useful load |
|
772 lb |
|
774 lb |
|
926 lb |
|
Wing span |
|
28 ft 7 in
|
|
28 ft 7 in |
|
28 ft 7 in
|
|
Fuel capacity,
std |
|
29 US Gal
|
|
29 US Gal
|
|
29 US Gal |
|
Max.cruise, at
75% power, best altitude |
|
116 knt |
|
126 knt |
|
128 knt
|
|
Max. range, at
65% power, best altitude |
|
915 km |
|
1200 km
|
|
828 km |
|
Max. range, at
65% power with optional 50 l tank,
best altitude |
|
|
|
1800 km |
|
1195 km |
|
Climbing speed,
sea level, at MTOW |
|
590 ft/min
3 m/s |
|
670 ft/min
3.35 m/s |
|
870 ft/min
4.4 m/s |
|
Take-off
distance, over 50 ft obstacle |
|
1755 ft
|
|
1443 ft
|
|
1591 ft
|
|
Landing
distance, over 50 ft obstacle
|
|
1510 ft
|
|
1541 ft
|
|
1541 ft |
|
|
