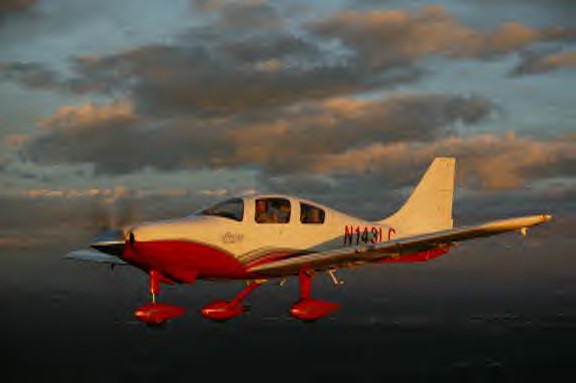

Columbia 400 performance and specifications
Specifications
power plant
|
Engine |
TCM
IO-550-N, 310 hp |
|
Propeller |
Hartzell
3 Blade |
|
Time Between Overhauls |
(TBO)
2000 hrs. |
|
Length |
25.2 ft. |
|
Height |
9 ft. |
|
Wingspan |
36 ft. |
|
Wing Area |
141.2 sq. ft. |
|
Wing Aspect Ratio |
9.2 |
|
Wing Loading |
24 lbs./sq. ft. |
|
Power Loading |
10.97 lbs./hp |
|
Maximum Fuel (US Gallons) |
98 Usable |
|
Oil Capacity |
8 qts. |
|
Wheel Track |
88 in. |
|
Wheel Base |
80.2 in. |
(Distance between nose gear
and main gear lateral axis)
Weight Data
|
Takeoff Weight |
3600 lbs.
(Maximum) |
|
Ramp Weight |
3612 lbs. (Maximum) |
|
Empty Weight |
2500 lbs. (Approximate) |
|
Useful Load |
1100 lbs. (Approximate) |
|
Landing Weight |
3420 lbs. (Maximum) |
|
Baggage Weight |
120 lbs. (Maximum) |
Speed Data
|
Maximum Operating Manoeuvring Speed |
158 KIAS
(3600 lbs. gw) |
|
Maximum Flap Extended Speed |
117 KIAS
(Full Flaps) |
|
Maximum Takeoff Flap Extended Speed
|
126 KIAS
(Takeoff Flaps) |
|
Maximum Structural Cruising Speed |
181 KIAS |
|
Never Exceed Speed |
230 KIAS |
|
Stall Speed in Landing Configuration |
59 KIAS |
|
Stall Speed (Takeoff Flaps) |
65 KIAS |
|
Stall Speed (No Flaps) |
69 KIAS |
| |
|
cruise data
|
Maximum Cruise Speed (18,000 ft. Density Altitude) |
230 KTAS (265 mph) |
performance data
|
Takeoff Distance (Sea Level – Standard Temp.) |
|
|
Ground Run (No wind at 3600 lbs. gw) |
750 ft. |
|
Over 50 ft. Obstacle (No wind at 3600 lbs. gw) |
1290 ft. (Total Distance) |
|
Landing Distance (Sea Level – Standard Temp.) |
|
|
Ground Run (No wind at 3400 lbs. gw) |
1550 ft. |
|
Over 50 ft. Obstacle (No wind at 3400 lbs. gw) |
2350 ft. (Total Distance) |
|
Maximum Rate of Climb |
1300 fpm |
|
|
