Rearwin Ken Royce Aircraft history performance and specifications

The Ken-Royce was named after Rae Rearwin's two sons and was a play on words meant to connote quality workmanship such as that of the Rolls-Royce company. The first aircraft type certificate was granted in 1929 and the plane was first shown at the Chicago Air Show in December of that year.

The Ken-Royce model 2000-C was built around the 170 hp Curtiss Challenger engine. Only 3 were known to be built (serial numbers 101-103).

The Ken-Royce model 2000-CO followed in 1930 and included a 165 hp Continental A-70 powerplant. The A-70 was lighter, and gave the 2000-CO similarly good performance characteristics at equal or greater weight. Only 2 were built (serial numbers 104 and 105).

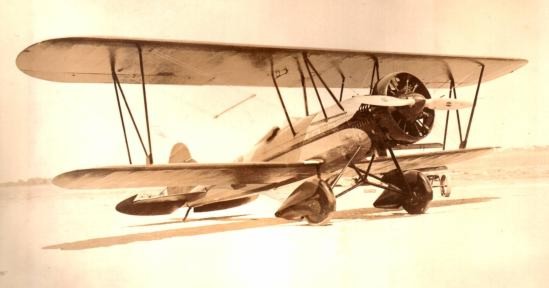

Rearwin Ken-Royce
Specifications

2000-C

2000-CO
Aircraft Type Certificate
232
(09-18-1929)
314
(04-16-1930)
Length

 25 ft.

 25 ft.
Height

 9 ft. 11 in.

 9 ft. 11 in.
Span

 35 ft.

 35 ft.
Wing Area

 300 sq. ft.

 300 sq. ft.
Construction
Fuselage: Welded chrome molybdenum and carbon steel tubing.
Wings: Spars of laminated spruce, not routed; ribs of spruce capstrips and basswood webs; solid web drag ribs with compression member of spruce at top and bottom capstrip; leading edge of spruce covered with birch plywood; trailing edge of formed sheet duralumin; wing tips of curved steel tubing; wing fitting cadmium plated; wings fabric covered.
Tail surfaces: Welded steel channels and tubes.
Landing gears: Bendix wheels and brakes with Rearwin Special air-oil shock absorbers. Tail skid or wheel optional.
Ailerons: Friese type on upper wing only.
Fin: Welded direct to fuselage.
Stabilizer: Adjustable from pilots cockpit.
Controls: All controls masts are internal. The elevators are operated by push-pull tubes; the rudder by flexible cables; the ailerons by torque tubes and flexible cables. No pulleys are used. Dual controls can be installed if desired.
Power Plant
Engine MFG
Curtiss Challenger
Continental A-70
Type
6 cylinder, air-cooled, radial
7 cylinder
Specs
170 hp. 1800 RPM

Fuel Data
Gasoline capacity (upper wing)

20 gal


Gasoline capacity (fuselage)
30 gal

Oil capacity
5 gal

Equipment
Instruments: Pioneer. Tail skid or wheel optional. Rearwin special air-oil shock absorbers. Navigation lights built into the tips of the upper wings. Starter optional.
Load
Weight empty

1415 lbs


Useful load

885 lbs


Payload

374 lbs


Gross weight loaded
2300 lbs

Performance
High speed (full load)

130 mph


High speed (pilot alone)

135 mph


Cruising speed (full load)

107 mph


Landing speed (full load)

45 mph


Cruising range (full load)

550 miles


Climb at sea level (full load)

1,000 feet/min


Climb to 10,000 feet (full load)

17 min 15 sec


Take off time (pilot alone)

5 1/5 sec


Take off time (full load)

8 2/5 sec


Absolute ceiling (full load)
24,000 feet

Price at factory
$6,750
$6,500
