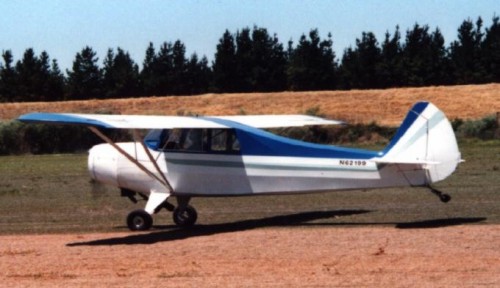

            Christavia MK I







            Christavia
            was designed as a mission field workhorse. Design requirements were
            short takeoff and landing, small engine (low fuel consumption), low
            stall speed, good cruise speed and rate of climb, large cabin area,
            low maintenance and a high safety factor. It is a conventional

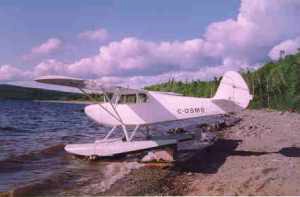

            high-wing monoplane that easily converts from wheels to floats or
            skis. Fuselage construction is conventional steel tube, wings are
            two-spar Sitka spruce. Both fuselage and wings are covered in Dacron
            and finished in dope. Engines can range from 50-150 HP. The
            Continental A65 is the most popular powerplant. Features include
            dual controls, complete instrument panel, landing lights, strobes,
            12V electrical system, tandem seats and a large baggage area. The
            Christavia is easy to fly and the large cabin makes long flights
            comfortable.





               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight


                useful load
                gross weight
                fuel capacity
                range |


                Cont. HP Range 65/65-100
                x

                21ft

                7ft

                32.5ft

                146.2sq. ft
                2

                740lb
                x

                1500lb

                19gal




            315n.m

                 |



            performance





                takeoff
                distance, ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |



            300ft


            900fpm





            118mph


            105mph


             800ft


                14,000ft |



            limiting and recommended speeds




                design
                manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x
                x


            40mph



                x |


            All specifications are based on
            manufacturer's calculations  |





            Canadian taildragger utilizes conventional
            steel lube, wood and fabric structure.
            Fuel is figured in imperial gallons. First
            flew in 1983.





   |



    |
