            The FK12 Comet is an ultra-light
            two-seat aerobatic bi-plane with an attractive durable design using
            modern materials. It has good flight performance with optimised
            laminar flow wings with 4full length ailerons (flaperons) making it
            highly agile with a good view. Due to space saving design, the wings fold down
            in a few minutes giving a transportation width of 2.42m. Despite the classical looks, this aeroplane can
            travel long distances at speeds of up to 200kmh; engines used are
            Rotax 912 or 912S of 80-100hp making this aeroplane sporting and
            fun.

            The individual design allows a 10-minute change
            from open cockpit single or double seat to closed cockpit double
            seat, enabling easy entry to both seats via hinged canopy. Fuselage and tail are mostly fibreglass with the
            remainder in ceconite covering, all over a tubular steel and
            aluminium frame; the wings are fibreglass with aluminium flaperons,
            wing wires are streamlined with end fittings. The propeller is a 3 bladed carbon type with nose
            cone.  Brakes are mechanically operated drum type,
            wheels are faired, seats are coloured carbon fibre, and fuel tank is
            in fuselage. Basic instruments are: Airspeed, Altimeter,
            Compass, Slip Indicator, Oil Pressure and Temperature, RPM and
            Cylinder Head Temperature. Main structure parts are made at the satellite
            factory in Krosno (Poland), by 48 staff.

            Hand assembly, finishing and quality control are
            carried out at Speyer (Germany), in an ex. Daimler Benz Aerospace
            building by 7 staff. All materials and processes used essentially meet
            German LN standards; the aeroplane is certified to German RFU95
            standard (similar to UK BCAR section S specification). Aircraft are supplied either fully built or in
            kit form (kits supplied less engine/prop, instruments and wiring). Back-up service is available from 4 sites in
            Germany with further sites in 5 European states plus Brazil.







               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight


                useful load
                gross weight
                fuel capacity
                range |


                Rotax 912ULS



                Ducaine composite fixed pitch three-blade.



                  l8ft



                  6ft 2in



                  23ft



                  144.2sq ft
                2



                  661lb



                  330lb



                  9921b



                  12.7 Imp gal


                x |



            performance





                takeoff
                distance, ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |

                x




                1,378ft/min


                x




                102 knots


                x
                x |



            limiting and recommended speeds




                design
                manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x




                119 knots




                33 knots


                x |





            the empty weight can be reduced to 5821b in the
            Microlight
            category and the max AUW increased to 1,146lb in the Experimental
            category. When operated in the Experimental category the G limits

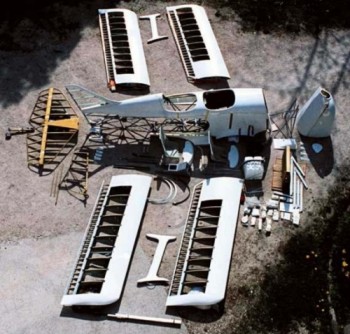

            also increase to +6/-2.66G. Folding wings

               All specifications are based on
               manufacturer's calculations



   |
