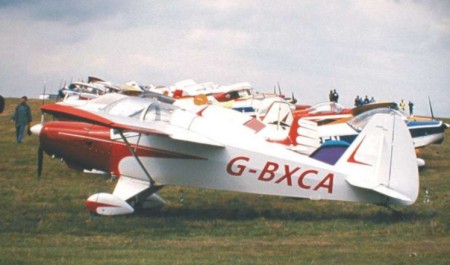

            Cygnet









            Full two-place light plane that retains very
            good takeoff and climb performance even at
            gross weight. Good visibility. First flew in
            1973. This aircraft is unconventional in the sense that it uses the
            geodesic wing construction technique, similar to the Wellington
            bomber of World War II.






               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |


                VW 1835cc

                HP Range60-82
                x


            19ft


            5.8ft

                30ft

                125sq.ft


            2



            585lb


                x


            1100lb



                15gal





            390n.m
       |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |



            700ft




            580fpm





            108mph





            100mph





            700ft


                x |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x
                x



            48mph


                x |


            All specifications are based on manufacturer's
            calculations
   |






       |



    |
