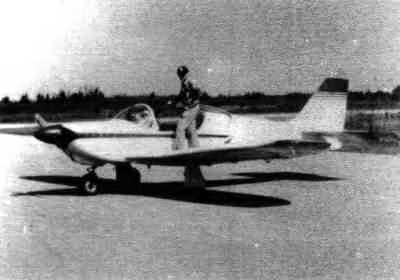

C.P. 60 Super Diamant
The C.P. 60 Super Diamant is a two plus two (2 + 2) seat*, low wing
aircraft designed by Claude Piel. Construction materials are wood &
fabric. And the landing gear can be built in fixed tailwheel or
retractable trigear configurations.
*Two seat, side by side. Plus a rear bench can be added to
accommodate an adult (max. 170 lb) or 2 children.
|
specifications |
| |
|
|
|
| |
Diamant
100 HP
Fixed Gear |
Super Diamant
150 HP
Fixed Gear |
Super Diamant
160 HP
Retractable Tri Gear |
| |
|
|
|
|
Span |
30.5 ft |
30.5 ft |
30.5 ft |
|
Length |
21.8 ft |
21.8 ft |
21.8 ft |
|
Height |
5.8 ft |
5.8 ft |
5.8 ft |
|
Area (Sq Ft) |
143.1 |
143.1 |
143.1 |
|
Empty Weight (lbs) |
995 |
1120 |
1150 |
|
Fuel (lbs) |
130 |
250 |
250 |
|
Gross Weight (lbs) |
1700 |
1875 |
1875 |
|
Dihedral |
5° 40' |
5° 40' |
5° 40' |
|
Incidence |
4° 10' |
4° 10' |
4° 10' |
Ultimate Load (G's)
at 1610 lbs |
+6.6
-2.64 |
+6.6
-2.64 |
+6.6
-2.64 |
Ultimate Load (G's)
at 1875 lbs |
+5.7
-2.28 |
+5.7
-2.28 |
+5.7
-2.28 |
|
Performance |
|
|
|
|
| |
Diamant
100 HP
Fixed Gear |
Super Diamant
150 HP
Fixed Gear |
Super Diamant
160 HP
Retractable Tri Gear |
|
|
|
|
|
Max Speed (mph) |
134 |
160 |
170 |
|
Cruise 75% 5,000 ft |
127 |
154 |
161 |
|
Cruise 65% 5,000 ft |
122 |
143 |
149 |
|
Range (miles) |
1200 |
1750 |
1850 |
|
T/O distance (ft) |
850 |
600 |
600 |
|
Stall Flaps Up |
56 |
56 |
56 |
|
Stall Flaps Down |
51 |
51 |
51 |
Approach Speed
Flaps Down |
78 |
80 |
80 |
Max Speed
Flaps Down |
87 |
87 |
87 |
|
Rate Of Climb (ft/min) |
500 |
1000 |
1100 |
|
Vne |
175 |
175 |
175 |
|
Landing Distance |
720 |
800 |
800 |
|
|
|
