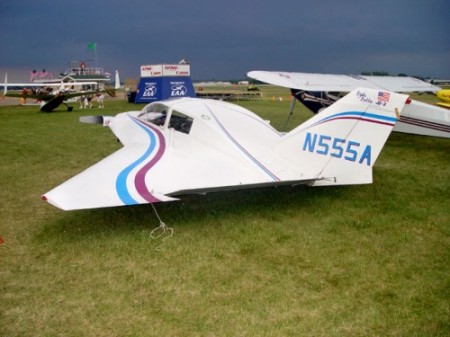

            Dyke Delta JD II















            The Delta has retractable landing gear and the wings fold up and
            over the fuselage for easy towing—no trailer required. The engine is
            a 180 hp Lycoming O-360. Cruise speed is about 170 mph. The
            windshield extends all the way up over the pilot's head which
            affords excellent visibility. Airframe construction is largely
            welded steel truss with a fibreglass skin attached with flush blind
            rivets. Notice the shape of the upper surface of the fuselage—the
            fuselage provides significant lift! More than 400 Dyke Delta plans
            have been sold and there are about 45 flying today with another 15
            or so still in active (or semi-active) construction.





               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |



                Lyc. 0-360


                HP Range180/160-200
                x



                19ft



                5.5ft



                22.2ft



                178sq. ft
                4



                1080lb
                x



                1950lb



                47gal



                750n.m |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |



                700ft



                1700fpm





                210mph



                180mph





                1000ft





                14,500ft |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x
                x
                x
                x |


            All specifications are based on manufacturer's
            calculations
   |












       |



    |
