VM-1 Esqual

Spanish built aircraft available in kit form.

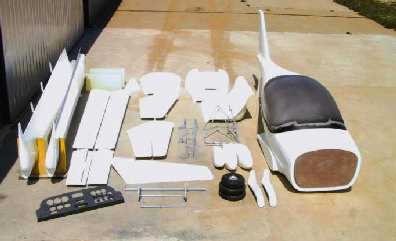

  • Fast easy to assemble kit
  • No composite work required
  • High quality gel coated vacuum bagged components
  • Everything supplied except for paint
  • Steel and aluminium parts powder coated or anodised
  • Cruise at 124kts burning 15 litres per hour
  • Push rod controls for precision aileron and elevator
  • Electric flaps
  • Fantastic visibility
  • Jabiru Six Cylinder gives a Max. speed of 178kts

specifications

powerplant
propeller
length
height
wing span
wing area
seats
empty weight
 useful load
gross weight
fuel capacity
range		 Jabiru 3300   Rotax 912S
x
 20'
6'4"
 29'10"
98.67 sq ft
2
 575 to 650 lbs
x
 1232 lbs
25 gallons
 x

performance

takeoff distance, ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
 service ceiling		 315 ft
 1500 ft / min Jabiru 3300    1000 ft / min  Rotax 912S
 205 mph Jabiru 3300   173 mph  Rotax 912S
 165 mph Jabiru 3300   145 mph  Rotax 912S
 315 ft
x

limiting and recommended speeds

design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed 		140 mph
 208 mph
x
x

All specifications are based on manufacturer's calculations
