            Sequoia Falco







            It was designed by Stelio Frati,
            one of the great aircraft designers of all time. It was certified as
            a production aircraft. It was built as a production aircraft and has
            a history of over 40 years of use by pilots in Europe.
            The F.8L Falco is a two-seat aircraft with
            comfortable side-by-side seating for two large adults and provisions
            for adding a third seat for a 90-pound child in the luggage
            compartment behind the pilot and passenger's seats. The modern
            instrument panel provides for a complete IFR installation.
            A true dual-purpose aircraft, the Falco offers an
            unbeatable combination of high-speed cross-country travel with
            complete aerobatic capability.
            Powered with a fuel-injected 160 hp Lycoming, an
            engine of legendary reliability, the Falco will cruise at 190 mph.
            The fuel-injected 180 hp Lycoming may also be used, providing a
            cruise of 198 mph and a dramatically higher rate of climb.
            Forty-gallon tanks provide an ultimate range of
            about 1,000 miles. All that speed means fuel efficiency-specifically
            about 25 miles per gallon.
            Normal landings and takeoffs require only 1,150
            feet to clear a 50-foot barrier. The flaps are very effective and
            allow for steep approaches. The landing gear is very rugged and is
            suitable for rough-field operation. The maximum permissible speed in
            a dive is 240 mph.
            The gross weight of 1,880 pounds provides a
            useful load of 668 pounds, ample for two people, full fuel and
            luggage. The aerobatic weight provides for the ability to carry two
            people, one hour of fuel and parachutes.


            The Falco is much stronger than a normal
            airplane, and this added strength means it is capable of taking
            loads far in excess of those that a normal aircraft could stand.
            Operational limits are +6 g's and 3 g's at aerobatic weight. The
            ultimate load factor is 7.8 g's at full gross-9 g's at aerobatic
            weight. The ultimate load factors provide a margin of safety of 50%
            over the normal operational load factors.
            With a power-to-weight ratio that is lower than
            most singles, the Falco accelerates quickly on takeoff. At 1,150
            feet per minute, the rate of climb is brisk. You'll be able to climb
            rapidly through weather to smooth clear air on top.
            The tricycle landing gear is retractable. Retraction time is
            approximately 7 seconds, and a hand crank between the seats is
            provided for emergency operation. The trailing-link landing gear
            absorbs energy well. You really have to work at it to make a bad
            landing in a Falco.

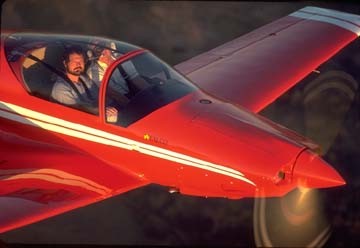

            The sliding bubble canopy provides easy entry and the unlimited
            visibility of the fighter pilot. The comfortable cabin has plenty of
            headroom. The ride in turbulence is smooth, and the vibration level
            is very low. The seats are adjustable and an optional rear seat may
            be fitted for a child. Dual control sticks are provided, and the
            stick on the right is removable to allow freedom of movement for the
            passenger. Exceptional visibility gives the cockpit an open and
            spacious feeling.
            A timeless beauty and a masterpiece of design. This is no
            ordinary aircraft. It is a classic European gran tourismo
            sex-on-wings design that has an elegance of design and a purity of
            form and function not found in other aircraft. The Falco's speed,
            aerobatic agility and smooth, jet-like handling puts it in a class
            completely to itself.
            Whatever your needs--aerobatics, cross-country flying or
            both--you will find that the Falco will add a new dimension of
            enjoyment. It will give a new meaning to flying, and put the joy of
            flying back where it should be. The Falco is flying as you always
            dreamed it would be.



            The Falco is made of wood. The ribs, spars and fuselage frames
            are made of fine-grained Sitka spruce and then faced with
            aircraft-grade birch plywood. The entire airplane is skinned with
            birch plywood. The interior surfaces are coated with epoxy, and the
            outside is covered with a very thin layer of fibreglass and epoxy
            for moisture protection.
            In many ways, the Falco is like building a balsa-wood model, only
            this one is full-size and build time can be up to 8000 hours! Wood is a pleasure to work with, and anyone
            can do it. No special skills or equipment are needed. With wood you
            can build an aircraft of unequalled beauty, and a well-designed wood
            structure, like the Falco, is very light.





               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |

                  160 hp Lycoming
                  IO-320-B1A


                Hartzell 2-blade, constant-speed

                  21' 9"

                  7' 6"

                  26' 3"

                  107.5 sq ft
                2

                1,212 lbs

                  668 lbs

                  1,880 lbs

                  40 U.S. gals

                x |

                  180 hp Lycoming
                  IO-360-B1E


                Hartzell 2-blade, constant-speed

                  21' 9"

                  7' 6"


                6' 3"

                  107.5 sq ft
                2

                  1,212 lbs

                  660 lbs

                  1,880 lbs

                  40 U.S. gals

                x |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |

                  570 ft

                  1,140 fpm

                  212 mph


                190 mph

                  750 ft
                x19,000 ft |

                  530 ft


                1,500 fpm


                220 mph


                198 mph

                  750 ft

                  19,000 ft |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |

                  140 mph

                  240 mph

                  75 mph
                x |

                  140 mph

                  240 mph

                  75 mph
                x |


            All specifications are based on manufacturer's
            calculations
   |






             |
