            Fisher Horizon 1







            Well established Fisher Flying
            Products has reproduced the flying qualities of many classic
            airplanes in structurally sound and extremely affordable aircraft.
            These ultra light and experimental aircraft have proven aerodynamic
            stability and desirable flight characteristics.

            From the company’s modern plant in Edgeley, North Dakota, the
            components for 15 classic replicas are manufactured by trained and
            experienced craftsmen. Research and development for new aircraft is
            on-going. Fisher Flying Products’ entire line of aircraft is sold
            throughout the United States and in 30 foreign countries.

            All models are available in two build-it-yourself forms:

            A standard construction kit, which offers the builder the experience
            of assembling the entire aircraft from pre-cut, shaped and slotted
            wooden pieces, machined hardware, a formed fibreglass cowling and
            aluminium fuel tank.
            A quick-build kit which contains a number of pre-fabricated
            components in addition to the standard pre-cut and formed parts
            found in the standard kit.

            Both kits come complete with easy-to-follow instructions and the
            industry’s finest full scale-full size blueprints. These blueprints
            allow the builder to essentially build the aircraft right on top of
            the blueprints with standard household tools.

            Standard construction kits can be completed by the average builder
            in 400–500 hours and quick-build kits reduce the construction time
            to 200–300 hours.

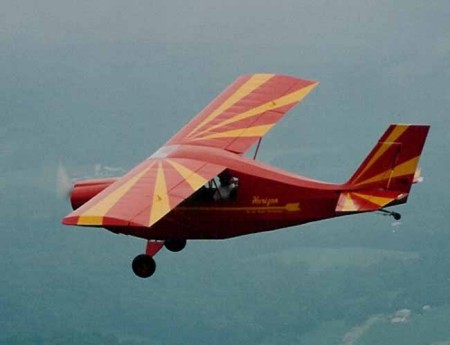

            Flying the Horizon 1

            The Horizon provides true STOL performance, good slow speed
            stability and a startling climb rate. It can carry a payload equal
            to its weight and is an excellent platform for lightweight floats or
            skis. You’ll find a large, roomy cockpit, tandem seating, optional
            two-cycle or four-cycle engines and a one man, two-minute wing fold
            system.

            Picture yourself in a shiny new airplane that has the feel, flight
            characteristics and styling of a classic machine.

            This lightweight wonder will out perform a classic airplane in
            virtually every category and can be operated for only a fraction of
            its cost. The Horizon is a sturdy airplane with more horsepower than
            the Piper Cub, but with only a portion of its empty weight. Just
            imagine the fun you’ll have flying this beauty.





               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |

                65-115 HP
                x

                18' 8"

                68"

                25' 3"

                113.6 sq. ft.
                2

                520 lbs.
                x

                1,050 lbs.

                13 gal.

                x |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |

                250 to 500ft

                800-900 fpm

                100 mph

                95 mph

                250 to 350ft
                x |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x

                120 mph

                38-40 mph
                x |


            All specifications are based on manufacturer's
            calculations
   |




             |



    |
