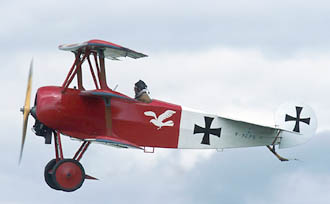

      full scale Fokker DR1 triplane
      Airdrome
      Aeroplanes







      All
      aluminium tubing to complete fuselage, wings, landing gear, cabines, lift
      struts, and formers. All aluminium sheet metal to construct gussets,
      cowling, & seat. All machined parts for control systems, lift struts,
      axles, and wings. All AN hardware to build aircraft, eye bolts, locknuts,
      thimbles, nico press swedges , aircraft cable (rudder cables,
      drag/anti/drag braces). Ball bearing rod ends for control system.
      Stainless steel pop rivets. Main wheels, tail wheel, spun aluminium nose
      bowl, plans and builders video.





               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |


                2180 VW Torquemaster,
      102 HP
                x

                x

                x

                x

                x

                x

      532 lb

      340 lb

                x

                x

                x |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |

                x

      1100 fpm

      94 mph

      72 mph
                x
                x |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x
                x

      32 mph
                x |


            All specifications are based on manufacturer's
            calculations
   |





             |



    |
