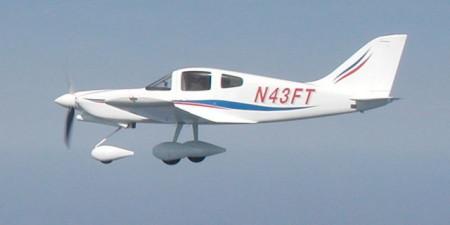

            Foxtrot 4








            This is a new and and very
            promising aircraft.


            Foxtrot 4 Initial Flight Report
            Pilot: Denny Funnemark
            Experience: 2,000 hrs
            Type A/C: Military: F-4, F-5,
            F-15
            Airline: Saab 340 General:
            C-172, Luscombe,
            Experimental: Tango 2,
            Foxtrot 4

            The Foxtrot 4 first flew on
            December 23, 2002. As of May 2003, Team Tango test pilot Denny
            Funnemark has accumulated over 35 hours of time on the aircraft. The speeds listed below are
            estimates based on wheel pants being installed on the aircraft. The
            Foxtrot 4 presently does not have wheel pants installed. Based on
            the speed increase on the Tango, the addition of these items should
            give the same 15 to 20 MPH increase to the speeds recorded during
            testing. The Foxtrot 4 is light in pitch
            with good stability. Roll is a little heavier than the Tango, but
            nimble compared to a Cessna 172 and quite stable. In cruise, the
            nose pretty much stays where you put it with very little trim
            necessary, making it a nice cross country platform. The Foxtrot 4 stalls gently at
            62 MPH at 2,800 lbs, full flaps. Slow flight is easy at 75MPH.





               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |



                  Lycoming IO-360   IO-540



                  260hp
                x



                  24.8ft



                  7.25ft



                  32ft



                  128sq ft



                  4



                  1,400 lb



                  1,200 lb



                  2,600 lb



                  108 US gal



                  1,800miles |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |

                x



                  3,000ft/min



                  230mph



                  218mph
                x



                  24,000ft |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x



                  245mph



                  58mph
                x |


            All specifications are based on manufacturer's
            calculations
   |





             |



    |
