            CGS

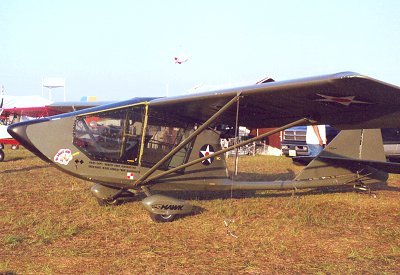

            Hawk "Plus" Single Seat

        The
        Hawk "Plus" is basically a revised version of the 1983 Two Place Hawk,
        with two place cargo area combined into a single seat.  While the
        Classic and Arrow single seat models have a large baggage area behind
        the seat, it can be difficult to place large bulky items back there.
        The "Plus" was designed to accommodate the requests of customers needing
        a larger cargo capacity.  The Hawk "Plus" has larger passenger doors
        coupled with a two place fuselage.  This combination allows for easy
        access to the baggage area while keeping the space large enough for a
        jump seat to be installed.  We have put 4 large filled duffle bags on
        board and still had room for the small stuff.  Wing tanks are standard
        on the "Plus" leaving the rear compartment available for optimal use of
        the space.  It can be used for storage or additional fuel tanks.  With
        the larger engine options offered, up to 250 lbs. can be carried in the
        rear baggage area.

        Another
        feature of the Hawk "Plus" are the wing spars, which are stronger than
        those found on standard single seat models.  They are 2 1/4" dia. X .083
        (instead of .049) wall thickness to provide the same load factors as the
        single place models.  The Hawk "Plus" is based on the Hawk Arrow
        design.  It has the same forward fuselage pod as the Two Place Arrow,
        which is 2" wider than the single place models. The Hawk "Plus" also has
        the semi symmetrical wing, streamline struts, reinforced boom, wing
        tanks, fibreglass nose cone, folding tail, curved overhead and
        windshield as standard equipment.





               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |

                ROTAX 447 40 hp
                x

                x

                x
                28' 10"
                135
                square feet
                1
                350 Ibs.
                x
                800 lbs

                x

                x |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |

                x
                800-1100
                fpm
                x

                60-80 mph
                x
                x |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x

                100 mph

                35-40 mph
                x |


            All specifications are based on manufacturer's
            calculations
   |
