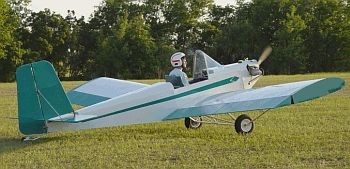

      Hummel CA 2







            The CA-2 is a light all metal legal
            ultralight (with Rotax 277) aircraft that can be built inexpensively
            from plans (approximately $2,000-2,500 for airframe) in 600 hours.
            Easy construction from sheet, angle extrusions, tubing and pop
            rivets.  No welding, gluing, machining, or difficult forming
            required.  Fuselage assembly performed on a flat table and wing
            assembly using a simple wood jig.


            Strong all metal wing (utility
            category +4.4, -2.2g), smooth push rod controls, large ailerons and
            rudder, wide landing gear stance for easy ground handling, and wing
            detaches with removal of three bolts.





               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |


                x
                x


                16.5 ft


                x


                26 feet



                17 sq. feet

                1


                250 lbs
                x


                500 lbs


                5 gallons


                125 mile  |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |

                x

                x


                63 mph




                50 mph

                x
                x |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x


                80 mph


                26 mph
                x |


            All specifications are based on manufacturer's
            calculations
   |




             |



    |
