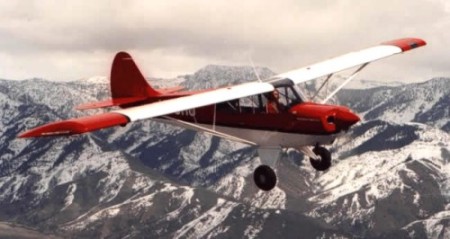

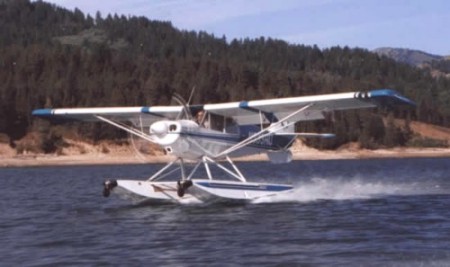

            Husky (Aviat)







            Aviat is a well established kit builder renowned for
            the quality of parts. Aviat Aircraft designed the Husky to service
            the special requirements of bush pilots and student pilots alike.
            The aircraft is reliable, responsive, and rugged. It can take just
            about anything an experienced bushwhacker or plebe can throw at it.

            The Husky, conceptually based on
            the world famous Super Cub, is a completely new design, created in
            1986 and fully certified in 1987. It was designed to do all the
            things that the Cub pilot used to say, "I wish it would do that!!!"
            - In other words an improvement on the world's favourite airplane.
            Over 650 have now been made and are in use all over the world. The
            Husky is fully FAA certificated and is in use throughout Canada,
            Australia, South Africa, all major European countries, Asia, and
            several South American countries. Used as an observation platform by
            law enforcement agencies, power and gas companies, environmental
            protection agencies and many others, it also is proven to have the
            power to be a very effective glider tug or to be used for banner
            towing, apart from being used as just a fun airplane for the sheer
            joy of flying.












               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |

                  Lycoming 0-360-A1P, 180hp

                  Constant Speed


                22' 7"


                22' 7"


                35' 6"

                  183 sq. feet
                2

                  1190 lbs

                  810 lbs

                Floats 832 lbs

                  2000 lbs
                 Floats 2200 lbs


                52 U.S. Gal

                  800 miles |

                Lycoming 0-360-A1P, 180hp

                  Constant Speed


                22' 7"
                x


                35' 6"


                  183 sq. feet
                2

                  1190 lbs

                  700 lbs

                Floats 711 lbs

                  1890 lbs

                Floats 2079 lbs


                52 U.S. Gal




                  800 miles |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |

                200 feet

                  1,500 ft/minute


                  126 kts

                  121 kts

                  350 feet


                20,000 feet |

                200 feet

                  1,500 ft/minute

                126 kts

                121 kts

                  350 feet

                  20,000 feet - MSL |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x
                x

                46 kts

                50
                kt |


                x
                x

                36 kts

                42 kts |


            All specifications are based on manufacturer's
            calculations
   |







             |



    |
