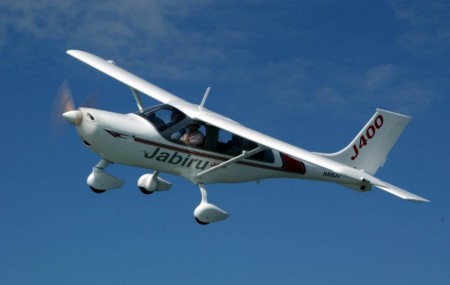

            Jabiru J400






            The Jabiru J400 (4 seater)  has
            evolved from combining the best features of the LSA, SP & UL models
            all put together & coming up with a new clean sheet design that has
            combined features. It comes with the standard LSA wing span with
            fuel in the wings. The longer tail boom results in more elevator
            and empennage authority, reducing the stall speed to 45 kts and
            increasing directional stability. The J400 was developed as a great
            replacement to the GA alternatives i.e. Cessna 172. The aircraft had
            it's maiden flight in Bundaberg in the 16th of March as a two seater.
            The flight testing as a four seater has been completed with great
            results.
            The Jabiru J400 will cruises at 115 knots on 20
            litres/hour, depending on the options selected.
            Jabiru have increased the Maximum Take Off Weight
            (MTOW) is now 700Kg  All of the Jabiru kitplane models have been
            structurally tested to 8.5g





               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |

                  Jabiru 3300cc

                  2 Blade Fixed Pitch
                  Wooden/Composite
                  60" dia x 53" pitch

                  21' 5"

                  7' 2"


                26’ 4"


                86.1 sq.ft
                2

                  693 lbs

                  847 lbs

                  1540 lbs

                  36 gals

                  828 sm |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |

                  960ft

                  1000 ft/min

                  130kts

                  120kts

                  640ft

                  15,000ft |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |

                  90kts

                  138kts

                  48kts
                x |


            All specifications are based on manufacturer's
            calculations
   |







             |



    |
