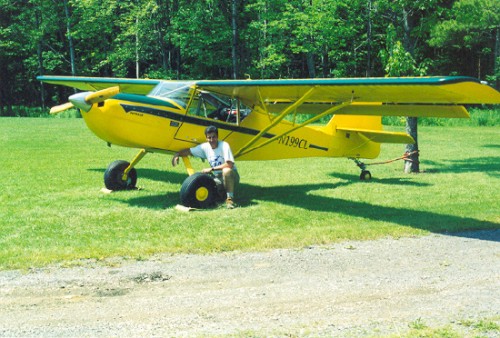

      Kitfox Series 5
            Outback

















            In
            1994, SkyStar aircraft was faced with an increasing demand to
            produce a significantly larger version of the Kitfox that would be
            able to utilize contemporary certified engines (Continental and
            Lycoming) in addition to the Rotax 912 engines.  The answerer to
            this demand was the entirely new Kitfox Series 5.  While appearing
            very similar to the Kitfox Classic 4, it is, in fact, a completely
            new design.  The Kitfox Series 5 introduced a new marketing approach
            in which different variations of the Series 5 were given names.  The
            tailwheel version became known as the Safari, and the tri-gear
            version (the first production tri-gear airplane based on the Kitfox
            design) was named the Vixen.  The Vixen utilized a swept tail, a
            cosmetic change that did not affect performance.



            Originally introduced with a gross weight of 1400 pounds, the gross
            weight was increased to 1550 pounds in mid-1995.  The handling
            characteristics became much more like those of contemporary
            certified aircraft, but lost none of the agility that had become a
            Kitfox trademark.  As with all Kitfox aircraft, the folding wing
            feature was retained.  In 1998, the name of the Safari was changed
            to the Outback, and the Vixen became the Voyager, but the basic
            features remained the same.  A short wing version of the Series 5
            was also sold, and it was known as the Series 5 Speedster.  Although
            heavier and larger, the Series 5 is an aerodynamically cleaner
            design than the Classic 4 and cruises at a higher speed.

            The Series 5, and variations thereof, are a
            delight to fly.  Refinements to the vertical tail surfaces and a
            new, trimable, horizontal stabilizer enhanced the pitch feel.  The
            Series 5 has a “smoother” feel than the quick reacting Model 4, but
            retains the overall agility.  Yaw stability is positive and good.
            The greater weight of the 1550 pound airplanes, coupled with the
            greater mass of Continental and Lycoming engines, causes the Series
            5 to feel very much like a larger, heavier, certified airplane.
            This is not a surprise, as the Series 5, along with its tooling, was
            specifically designed to meet Primary Aircraft certifications
            standards.  The tri-gear version of the Series 5 (Vixen/Voyager) is
            a contemporary nose gear airplane in all respects.  The use of
            differential braking to steer the tri-gear airplane may take some
            practice, but offers unparalleled ground manoeuvrability.  The
            larger engine choices result in a larger cowling and limited forward
            visibility during ground operation of the tailwheel version of the
            Series 5.  Good tailwheel proficiency is suggested before your first
            flight of the “limited view” Series 5.  Cruise flight in the Series
            5 is nose low, resulting in very good in-flight visibility.












                |

                Gross weight |

                1550 lbs. |


                |

                Average cruise speed |

                110 mph |


                |

                Stall speed  |

                46 mph |


                |

                Average empty weight |

                800 lbs. |


                |

                Average useful load |

                750 lbs. |


                |

                Max speed (Vne) |

                140 mph |


                |

                Cabin width   |

                42.5 in. |


                |

                Wing span |

                 32 ft. |


                |

                Length (wings folded)  |

                22 ft. |


                |

                Width (wings folded) |

                8 ft. |




                Height
  |

                97 in.


  |



                   |

















             |



    |
