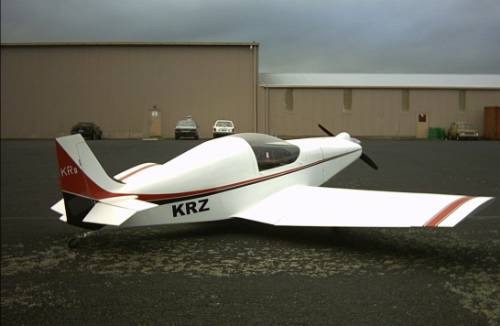

      On June 1, 1974, the KR-2, a two seat version emerged into
      the world of experimental aviation with its maiden flight. The prototype
      KR-2, N4KR, was powered by an 1834cc Revmaster, which is an otherwise
      stock 1600cc VW with 99mm cylinders. This particular engine was a single
      ignition version and used a Bendix mag and a Posa carburettor. Revmaster
      gives the engine a continuous rating of 60 hp at 3000 rpms, which is on
      the conservative side. Ken Rand, the designer/builder, obtained cruise
      speeds of 180mph at 3200 rpm and airspeeds of 200mph at higher altitudes.
      Some aircraft have not been built sufficiently lightweight and became in
      effect single seaters.

      A KR2 fitted with a Jabiru engine (lighter with more power)
      has flown from the UK to Australia and back with 2 people.





               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |

                VW 2100
                x

            14' 6"

                x

            20' 8"

            80 sq. ft.

            420 lbs.

            480 lbs.
                x

            900 lbs.
                35 gal

                1600 miles |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |

                350 ft.
                800 fpm

                200 mph

                180 mph

            900 ft.

                15,000 ft. |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x
                x

                52 mph
                x |


            All specifications are based on manufacturer's
            calculations
            Fixed conventional or trigear, or retractable
            conventional
   |
