            Lancair Sentry

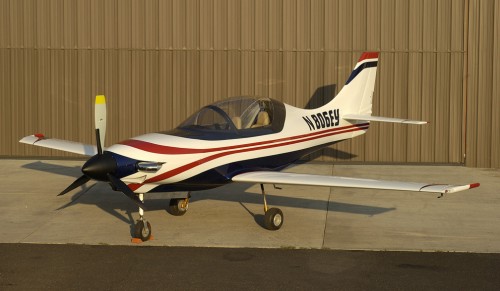

            The Lancair Sentry. This Walter powered Lancair IV is a
            military-style tandem seat aircraft with left-side throttle
            controls, and a rear hinge canopy.

            The aircraft was designed for military training, but is still
            available for the typical Lancair customer. Only the top segment of
            the existing Lancair IV fuselage was modified for the new Sentry, as
            well as portions of the vertical tail. It also offers increased yaw
            stability and excellent visibility out of a newly designed rear
            hinge canopy.


            Lancair is offering rebuilt Walter 601E turbines with a TBO of 2000
            hours or new with a TBO of 3000 hours. Currently we are using a
            prototype 82" 3-blade Hartzell propeller; however, an 84" propeller
            from AVIA is also available.





               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |


                      Walter 601D

                      708 H.P


                      3 Blade, Constant Speed



                      26
                ft

                x



                      30.2
                ft



                      98 sq
                ft
                2


                      2200 lbs


                      1350 lbs


                      3550 lbs


                      125 gal.


                      1150 Sm |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |


                      1500 ft


                      4000 fpm
                x


                      380 mph


                      1700 ft
                x |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x
                x


                      74 mph
                x |


            All specifications are based on manufacturer's
            calculations
   |










             |



    |
