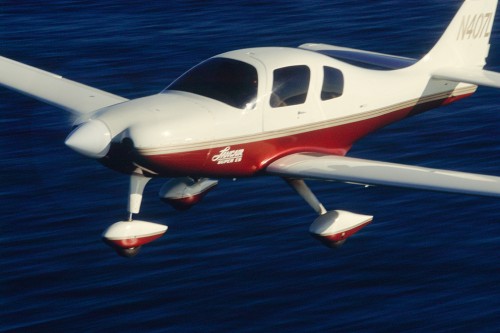

            Lancair Super ES








            Derived from the award-winning, world record setting Lancair IV, the
            ES and Super ES are the result of nearly 10 years of research,
            innovation and pilot input. These visionary, four-place aircraft
            have it all; high climb rate, long endurance, slow landing speed,
            premium comfort, all packaged in a very elegant, streamlined design.
            They can haul a load with speed that is unmatched (200-225 mph) for
            a simple, fixed gear aircraft. What’s more, they are as easy to
            assemble as they are to fly.






               specifications



                  |   |

                Lancair ES |

                  Lancair Super ES |






                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight


                useful load
                gross weight
                fuel capacity
                range |

                Continental IO-360-ES
                210 h.p.


                2 blade, constant speed

                25 ft

                8 ft

                35.5 ft

                140 sq ft
                4

                1900 lbs
                x

                3200 lbs


                75 gallons


                1450 sm (no reserve) |

                Continental IO-550-G

                300 h.p.

                3 blade, constant speed

                25 ft

                8 ft

                35.5 ft

                140 sq ft
                4

                2000 lbs
                x

                3200 lbs


                75 gallons


                1280 sm  (no reserve) |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |

                600 ft

                1250 fpm
                x

                192-200 mph

                800 ft

                18,000 ft |

                600 ft

                1550 fpm
                x

                220-225 mph

                800 ft

                18,000 ft |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x
                x

                57 mph
                x |


                x
                x

                57 mph
                x |


            All specifications are based on manufacturer's
            calculations
   |






             |



    |
