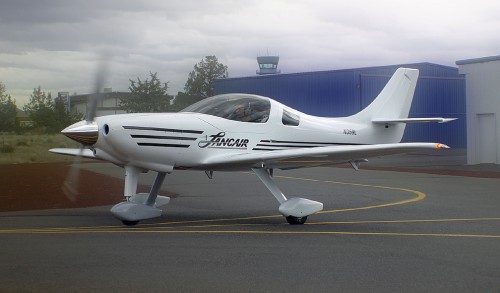

            Lancair Legacy 2000 Fixed Gear








            The Legacy Fixed Gear kitplane is a simple, economical version of
            the existing retractable gear Legacy. Other than the permanent down
            and locked wheels, the fixed gear Legacy is very similar to its
            retractable gear counterpart. Sharing the fuselage, wing and tail
            with the retractable gear Legacy makes for balanced and quick
            handling characteristics while reducing the cost with fibreglass
            construction. The new Legacy FG is designed to accept a four

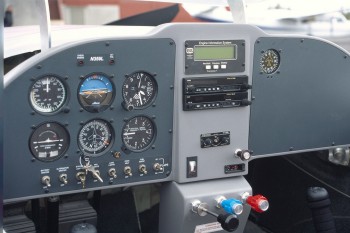

            cylinder Lycoming engine with a conventional instrument panel to
            lower costs and reduce build time. Fitted with a 200 hp Lycoming
            IO-360A1B6 powerplant, the Legacy FG upholds Lancair's performance
            reputation with a typical cruise of over 210 mph and a range of more
            than 1,300 statute miles. Legacy FG builders will also have the
            option of taking advantage of Lancair's highly regarded builder
            assist program.







               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |


                        Lycoming IO-360-A1B6

                        200hp


                        2 Blade, Constant Speed


                        22 ft

                x


                        25.5 ft


                        82.5 sq ft
                2


                        1300 lbs.


                        900 lbs.


                        2200 lbs.


                        65 Gal.


                        1350 sm |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |


                        900 ft


                        1850 fpm
                x


                        210 mph
                x


                        18,000 ft |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x
                x


                        65 mph
                x |


            All specifications are based on manufacturer's
            calculations
   |





             |



    |
