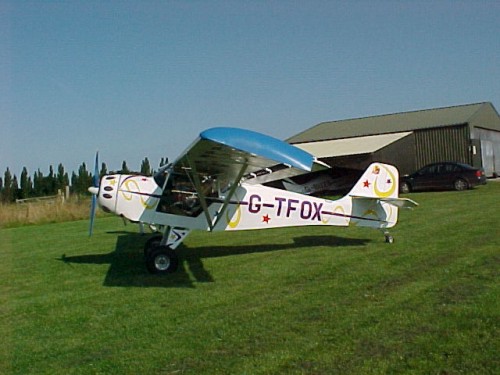

            Kitfox Model 2








            The
            larger, wider Kitfox Model 2 was introduced in 1989.  This “beefier”
            Kitfox allowed for greater useful loads and more room in the cabin.
            The Model 2 featured a larger vertical tail area and the new Rotax
            582 engine option.  The gross weight was increased to 950 pounds.
            The airfoil and control systems remained the same as the Model 1,
            but spars were strengthened to accommodate the higher gross weight.
            Flying-wise, the Kitfox Model 2 is quite similar
            to the Model 1.  The larger tail surface helped some with the yaw
            issues, but was somewhat offset by larger engines and the
            introduction of wing tanks.  Like the Model 1, the Model 2 is yaw
            neutral and needs to have the nose “placed” where it needs to be.
            Flaperon use and characteristics are virtually identical to the
            Model 1.  Dual brakes were available for late Model 2 airplanes, and
            many earlier Model 2 airplanes have had dual brakes installed.
            Ground handling is similar to the Model 1, but the increase in gross
            weight, therefore greater mass, does cause one to pay a bit more
            attention to the landing rollout.





               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |


                Rotax 582
                x

                x


                  67 in.


                  32 ft.

                x
                2


                  426 lbs.


                  524 lbs.


                  950 lbs.

                x

                x |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |

                x

                x
                x


                  85 mph
                x
                x |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x
                x


                  30 mph
                x |


            All specifications are based on manufacturer's
            calculations
   |






             |



    |
