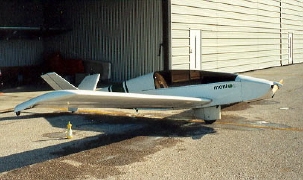

      Monnett Moni






        Schoolteacher
        John Monnett designed the Moni (mo-nee) during the early 1980s and then
        coined the term 'air recreation vehicle' to describe this airplane.
        Monnett's design almost captured all the merits that so many leisure
        pilots longed to find in one aircraft. The Moni looked great just
        sitting on the ramp. It performed well and someone reasonably handy with
        average shop tools could construct one in their own garage. The design
        had much going for it but like so many homebuilt aircraft before and
        since, a few key engineering lapses in the design, plus problems with
        the engine and propeller, relegated the Moni to the category of
        homebuilt aircraft that promise much in design but fail to deliver.

        Monnett
        first flew the Moni during July 1981. He sold about 380 kits from 1982
        until his company ceased operations in 1986. A homebuilder unpacking his
        mail-order Moni kit found all components pre-shaped from aircraft-grade
        aluminium except for the expansive Plexiglas canopy. Only an electric
        drill, sheet metal shears, and a pop-rivet gun were required to
        construct most of the aircraft. The wing skins required some expertise
        to bond them to the wing structure but Monnett claimed overall
        construction time ran about 350-400 hours.
        The
        finished Moni was a mildly aerobatic motoglider, surely one of the most
        fun and economical types of airplanes. A Moni pilot could zip along at
        193 kph (120 mph) or stop her engine and glide around in search of
        thermal updrafts at a respectable 20:1 glide ratio. Airframe weight
        totalled about 118 kg (260 lb), a mere 1.8 kg (4 lb) over the legal
        weight limit for ultralights but the Moni was at least two times faster.
        All this superb performance depended on a small and economical power
        plant, the KFM 107 two-stroke, air-cooled engine that Monnett included
        with all the kits he sold. Performance also depended on a sound airframe
        but glue held the wings together in the early kits. After several wings
        failed in flight, Monnett redesigned the wings for riveted construction
        but the Moni's reputation suffered.
        Many
        builders completed their Monis with all design modifications and safety
        upgrades. They found the little aircraft was almost as fun and
        economical as John Monnett had claimed. One pilot said this about his
        Moni: "I think that the Moni is a joy to fly. I have flown throughout
        Oklahoma, into Texas and Kansas. I took one cross-country that was 700
        statute miles round trip. The Moni does what it was designed to do very
        well. It is a good day VFR recreational aircraft."





               specifications


           | Wing Span
           (Long Wings) |

           27 ft. 6
           in. |


           | Wing Span
           (Short Wings) |
           16 ft. |


           | Length |
           15 ft. |


           | Height |
           3 ft. 3 in. |


           | Wing Area
           (Long) |
           75 sq. ft. |


           | Wing Area
           (Short) |
           44 sq. ft. |


           | Empty
           Weight |
           260 lbs. |


           | Gross
           Weight |
           560 lbs |


           | Cruise
           Speed |
           110 mph |


           | Maximum
           Speed |
           120 mph |


           | Rate of
           Climb |
           500 ft. per
           min. |


           | Range |
           320 mi. |



            |








             |
