Osprey 2

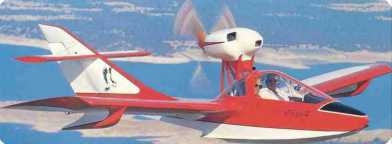

The Osprey is a two-place amphibian with tricycle, retractable landing gear. Construction is basically all wood and built much like a large scale model airplane. Well proven with 500 or more now flying, this 1974 design is ideal for the amateur wood worker's shop.

specifications

powerplant
propeller
length
height
wing span
wing area
seats
empty weight
 useful load
gross weight
fuel capacity
range		 Lycoming 150-160 hp
x
 21ft
 x
 26ft
 130 sqft.
2
 960 lbs.
 420 lbs.
 1560 lbs.
 32 Gal
 500+miles

performance

takeoff distance, ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
 service ceiling		 400 ft
 1,200 fpm
x
 130 mph True
 700 ft.
 20000ft

limiting and recommended speeds

design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed 		x
 150 mph
 65 mph
x

All specifications are based on manufacturer's calculations
