Revelation

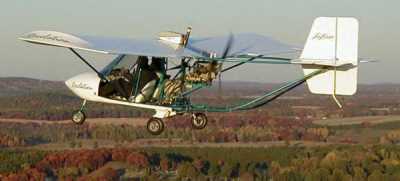

The Revelation is a side by side
seating two place, using tricycle landing gear, in a pusher
configuration. The designer Chuck Hamilton, also designed the
popular Challenger line of aircraft. Construction is bolt together
aluminium tube, covered in conventional aircraft covering materials.
Building times 250/300 hrs.
Two pilots can sit quite comfortably in its 43 inch wide cabin.
Controls are stick and rudder, with optional yoke controls
available. The factory reports that the craft has been tested to +7
and -5.6 Gs.
specifications
powerplant
propeller
length
height
wing span
wing area
seats
empty weight
useful load
gross weight
fuel capacity
range |
ROTAX 503B 52 hp
x
x
6’3.5”
30’8”
179 sq ft
2
465 lbs
635 lbs
1100 lbs
x
x |
performance
takeoff distance,
ground roll
rate of climb
max speed
cruise speed
landing distance, ground roll
service ceiling |
200 fpm
400 ft
x
66 mph
x
9,000 ft |
limiting and recommended speeds
design manoeuvring speed (Va)
never exceed speed (Vne)
stall, power off (Vsl)
landing approach speed |
x
120 mph
49 mph
x |
All specifications are based on manufacturer's
calculations
|
|
|
