      The

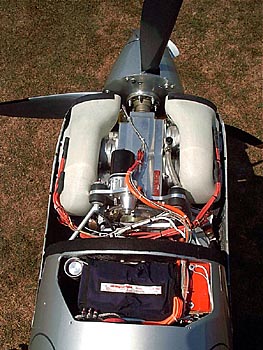

      elegant fuselage shows several clever refinements. The front section hosts
      the compact Mid-West rotary engine, which is installed from the top
      between the carbon fibre engine carriers. The upper cowling, with its
      shark-like cooling gills, is held by two spring steel wires, which are
      pushed in from the front side and locked by snapping them behind a safety
      plate. Beneath the engine, the air intake and exhaust section is covered
      with a removable cover. In between engine and cockpit is a ballistic
      recovery system, mandatory for micro lights in Germany. In an emergency,
      it fires upwards through a lid held on only by clear adhesive tape. The
      cockpit itself forms a modern safety cell, the basic idea of which has
      been borrowed from Formula 1 racing car designers. Into the outer
      honeycomb structure of the fuselage, an Aramid fibre cell is fitted. The
      carbon fibre seat-pan with its stiff backrest to protect the pilot's spine
      can be removed to enable the control systems to be reached. Behind it, in
      the rear fuselage tube, a baggage compartment can be fitted, its loading
      capacity limited by the centre of gravity, depending on the pilot's weight
      (he sits behind the C of G). The pilot is strapped to the safety cell by a
      modern four-point-harness, and the cell is directly fixed to the BRS. This
      is a very safe cockpit, professionally manufactured.

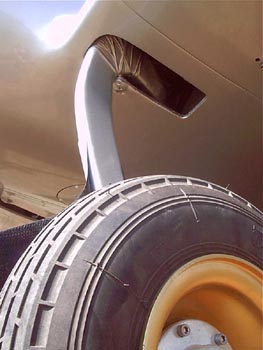

      The electrically retractable main undercarriage
      is hinged at the fuselage and rotates backwards around a diagonal axis.
      While the 'legs' remain outside at the wing root bottom, the wheels with
      their hydraulic disc brakes disappear almost completely into wells which
      are half in the wing and half in the fuselage. Doors screwed to the legs
      cover the wheels when retracted. The small covered tail wheel is
      double-sprung a spring acting telescopically in the fuselage takes the
      vertical loads, and a rubber block just above the wheel allows it to swing
      backwards when small obstacles on the ground are hit.
      The control system is simple and
      well-thought-out. Elevator and ailerons are operated by pushrods, the
      rudder by cables and the flaps via a torsional drive by an electric motor
      in the fuselage. The spring elevator trim is also electrically actuated.

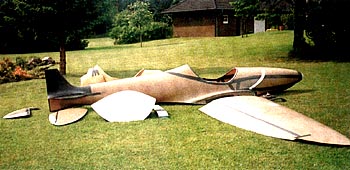

      Like a glider, the Silence can be rigged and derigged for hangaring or
      transport in only ten minutes. Rigging is simple, and, if the fuel tanks
      are empty, may be carried out by only one person. Once the wings are slid
      into their slots in the fuselage, one eccentric bolt for each wing
      underneath the seat pan serves to pull the wings in by swinging the bolt's
      lever behind the securing spring metal sheet hook. The torsional drive of
      the flaps connects automatically during assembly, while the aileron
      pushrods have to be connected to the lower end of the stick by bolts with
      securing Fokker safety pins. The fuel hoses, the wires of the fuel
      indicators of both wings and the pitot pressure hose from the right wing
      are connected by reaching through the undercarriage openings below the

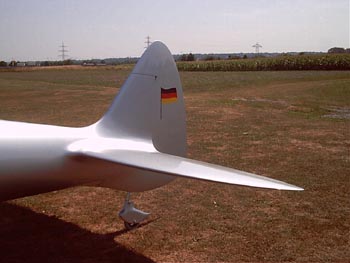

      fuselage. Finally, the tail plane halves are slid onto the aluminium tube
      spar ends at the fuselage and secured by a spring steel wire pushed in
      from behind, the elevator connecting automatically via a hexagon head
      torsional link. If the rudder has also been taken off, it is inserted from
      above and secured by two Fokker pins. A look underneath the cowling to
      check whether there is enough cooling liquid and oil in the reservoirs
      (the Mid West Harrier uses about 2.5% of the fuel consumed as 'lost
      greasing oil'), before refuelling the tanks, and the Silence is ready to
      fly.

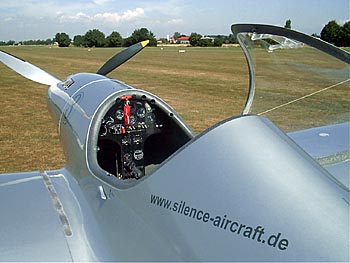

      The cockpit is easily entered from the front side
      by stepping onto the tire and then the narrow fuselage section of the wing
      root. After pushing forward the canopy locking lever at the outside
      fuselage surface, the canopy can be swung open towards the right side. The
      pilot then slides easily into the well-upholstered,
      ergonomically-designed, but non-adjustable seat: there is enough space
      here even for tall pilots. A head-rest had not yet been installed on the
      one I saw, but this can easily be done. The rudder pedals can be adjusted
      separately by turning two knobs in the instrument panel: the designers are
      considering connecting these two knobs together to avoid asymmetric
      settings. The cockpit's large instrument panel is well equipped. The BRS
      handle at the front frame is within easy reach and can be secured with a
      lock. At the left cockpit wall, there is one small fuel cock. In spite of
      the fact that there are two tanks, one fuel cock is enough because the
      tanks are inter-connected.

      The engine
      takes the fuel from the left tank, which has no ventilation and is
      refilled from the ventilated right tank. This system is very simple, but
      comes with the disadvantage of asymmetric wing loading during flight.
      However, as the tanks are close to the fuselage, this is not expected to
      greatly affect the flying characteristics. Nevertheless, the manufacturer
      plans to install separate fuel cocks in later aircraft to preclude the
      possibility of asymmetric wing loading. The throttle is placed in the spot
      where you would find the pilot's left hand in a relaxed position. The two
      buttons for trim operation and also the transmitter button are placed on
      top of a fighter-like control stick. The trim setting is indicated by an
      electronic instrument. A knob in the instrument panel serves to set the
      flaps to 0, 10, 20 or 30°, and a covered switch besides it operates the
      undercarriage. In case of a failure of the electrical system, there is a
      red emergency extension handle between the pilot's legs. If this handle is
      pulled, the undercarriage is disconnected from its spindle drive and then
      pulled out, assisted by gravity, until it is in the 'down and locked'
      position. The status of the undercarriage (up, in transit and down) is
      indicated by LEDs, other LEDs warn if the engine is operated outside its
      normal parameters, although there are also conventional instruments
      fitted.



      When I test-flew the
      Silence V2 at Bielefeld-Windelsbleiche airfield on September 5, 2002, it
      was not yet in final serial condition in fact, it had only made its maiden
      flight the day before. The wheel covers for the undercarriage legs were
      not yet fixed in place and the propeller was still a shortened, fixed
      two-blade Helix unit. The planned three-blade electrically adjustable
      Silence propeller, already used on the first prototype where it rotates
      right-hand, was not yet available in the left-hand rotating version needed
      for the Mid-West. Finally, the engine power was not yet fully available,
      and resonance problems still required some adjustment to the air supply
      system.
      On closing the canopy, it can be locked by
      pushing backwards the small knob on the left cockpit wall. The main switch
      and starter function are united in an ignition key lock similar to that on
      a car. After switching the key to 'ON', the two ignition switches and the
      two fuel pump switches beside the key are switched on. With the Mid-West
      engine nothing runs without fuel pressure, so the second pump is a
      mandatory safety feature for take-off and landing. With the throttle set
      to a little above idle, the engine starts immediately on turning the key
      to the 'start' position. It runs a bit rough below 4,000rpm and only
      becomes smooth above 4,000rpm typical behaviour of one-disc rotary engines.
      To protect the ears from the relatively high frequency engine noise, a
      good headset is recommended. The time needed to warm up is short, and
      after checking the ignition and fuel pumps, the Silence is ready for
      take-off. During taxiing I found the separate toe brakes effective and
      easy-to-operate, and the tail wheel, spring-connected to the rudder, easy
      to steer. By using differential braking, quite tight turns are possible.
      My eyes were just at the height of the narrow front cowling tip, so I did
      not need to taxi in a zigzag to get a decent view.



      This Silence weighs
      exactly 441lb empty. With me in the cockpit and 11 Imp gal of fuel
      (standard 92 oct car fuel), it weighs 683lb: even with full tanks I would
      still be below the maximum permitted 750lb. The centre of gravity is in
      the forward range. For take-off, I turn the flaps knob to 10° and set the
      trim to neutral. After pushing the throttle forwards until I reach 1cm
      behind the front stop (because of the resonance problem mentioned earlier,
      the engine starts coughing with more throttle), I accelerate quickly with
      the stick held slightly forward.

      As soon as the tail wheel lifts off, I
      need a small amount of left rudder to compensate for the propeller torque.
      At 43kts it lifts off, and I let it accelerate to 60kts before starting to
      climb. At a safe height I retract the undercarriage, set the flaps to 0°
      and switch the second fuel pump off. In this clean configuration, I find
      the best climb rate at 65kts, and although the engine performance is not
      fully available it climbs at about 790ft/min. With the engine problem
      solved, I expect the aircraft to climb in excess of 1,000ft/min. The
      heavier prototype with the 65hp engine which I flew in the spring climbed
      at nearly 1,180ft/min. Trimmed to the best climb speed of 65kts, only a
      small amount of left rudder is needed to keep it flying straight. On
      reaching 2,500ft, the engine's three minutes of permitted full power
      operation have passed and the cooling liquid temperature comes close to
      its maximum. I reduce the power to the maximum continuous setting of
      7,100rpm and continue climbing at 70kts, with the result that the
      temperatures remain in the green arc.


      During
      cruise flight, this rpm limit is already reached at 86kt with the current
      Helix propeller. The prototype, equipped with the Silence-developed
      three-blade variable pitch propeller, reaches more than 108kts with no
      problems. In this aircraft, and probably also the Mid West-powered ones
      equipped with the new propeller, the 17.6 Imp gal of fuel makes possible
      620-mile flights at a cruise speed of around 100kts.

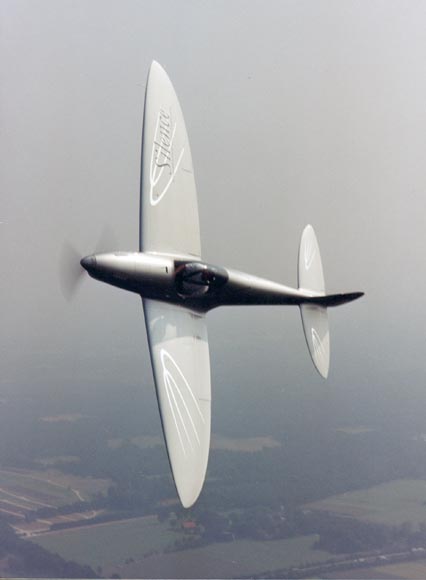

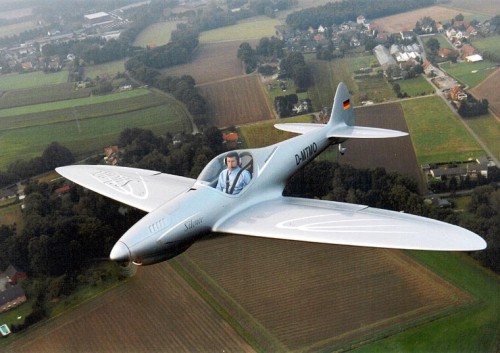

      I am particularly impressed with the handling of
      this little aircraft. The control forces remain very low, though positive,
      for just about the whole speed range. The Vne of the 'Experimental'
      version is calculated as 162kts, though it is only 140kts for the micro
      light version due to the limited operating speed of the BRS. The
      sensitivity of the Silence gives the impression of flying a
      fully-aerobatic aircraft, and trimmed to cruise speed it flies beautifully
      stable in the 'hands off' position. However, if the right fuel tank is
      empty and the left one full, a small amount of aileron deflection is
      needed to keep the wings level.
      These excellent general handling
      characteristics are further supported by the excellent view through the
      big canopy and the good fresh air supply through the nozzles in the front
      cockpit frame. Cabin heating is also installed, though in the current warm
      weather I feel disinclined to test its efficiency. The only thing I miss
      is a small 'direct-vision' panel in the canopy I once experienced outside
      cabin icing when descending with a cold glider through an inversion layer
      into warm, humid air, and opening this window then saved me from being
      'blind' and lost... How does such an elliptic, fully-symmetric wing behave
      when it is stalled?
      I was quite astonished at the gentleness of the
      stall. With the engine running at idle and the flaps at 0°, the Silence's
      controls start feeling soft at 43kts: at 40kts the stall starts buffeting
      and speed increases to 43kts again in the staggering stall, where it can
      be held by using the rudder. With the elevator further back, staggering
      increases and I start feeling as if I am sitting on a wild horse, though I
      can still prevent it from departing into spin with the rudder. I think
      this effect is caused by the turbulence separating behind the wing root
      (which was probably stronger than usual due to the uncovered retracted
      wheels underneath the wing) hitting the tail. With its forward C of G
      position, the Silence starts dropping the nose, but immediately the
      airflow comes back to the tail plane, the game starts again.
      Setting the flaps results in the same
      behaviour,
      with the minimum indicated speed decreasing by about 2kts per 10° of flaps
      set. With full throttle, the indicated speeds are again 1kt lower. The ASI
      of this aircraft had not yet been calibrated and seems to over-indicate
      slightly with the prototype, a calibrated airspeed of 35kts at 750lb AUW
      has been demonstrated during the certification. When I flew this prototype
      with an aft C of G and the wheel covers fitted, the staggering was less
      pronounced. It did try to drop a wing, although the incipient spin could
      be stopped immediately by relaxing the stick and applying opposite rudder.
      The Silence shows excellent control harmony. With the engine running at
      idle and trimmed to 70kts, it raises the nose and starts climbing at 65kts
      once the throttle is opened fully. Setting the flaps (below 65kts) to
      different positions does not really influence the trimmed speed. Its roll
      rate is impressive: when full rudder and aileron are applied, even at the
      slow speed of 59kts it rolls from 45° to 45° bank within 1.5 seconds
      without side slipping. This roll rate is practically aerobatic, and care
      has to be taken not to stall the lower wing when applying full aileron and
      not enough rudder against the rolling direction. But even in such a
      situation the Silence is straightforward a kick into the rudder against
      the rotation direction stops the initial snap roll immediately.



      The
      manoeuvring speed, up to which full control deflections are permitted, is
      97kts, and the maximum allowed speed to fly through stronger gusts is 119
      kts, clearly above cruising speed. Compared to other fast micro lights, in
      which you should cut your flying speed considerably when flying on a day
      with strong thermals, this gives a good margin of safety. Of course, these
      flying characteristics may tempt some to try a few aerobatics. However,
      the rules of the micro light category set clear limits aerobatic are
      generally prohibited in these aircraft. Anyone with ambitions in the
      direction of aerobatics could always buy the strengthened kit Silence
      Aircraft offers. If the builder completes it at home and certifies it as
      an aerobatic aircraft in the 'Experimental' category, there are no limits
      to gambolling around the sky (and probably outclassing the Tipsy Nippers
      and RF-4s you can hardly ever find in the second-hand market...).
      The electric flap drive acts rapidly. Within
      three seconds the flaps reach their maximum of 30°: the undercarriage
      needs 7.5 seconds for retraction and 9 seconds for extension. The maximum
      speed in landing configuration with the flaps set to 30° is limited to
      65kts. Under calm weather conditions, I find an approach speed of 56kts
      comfortable and perfectly safe. Before landing, I switch the second fuel
      pump on again. The flaps are effective, and with the engine running at
      idle it is easy to control the glide path. Side slipping is very easy and
      effective, permitting very steep approaches and further improving the
      pilot's (already good) view of the runway it also feels as if it's the
      right way to land an aircraft resembling a Spitfire!
      Provided you stopped side slipping after holding
      the Silence off until the nose was at the correct attitude, and that you
      centralized the rudder before the wheels touched the ground in a proper
      three-point attitude, the Silence will land gently. If you do not follow
      the advice given above, it will 'dance'
      a little on the runway, due to the un-damped, but
      sufficiently sprung undercarriage. Even a strong or gusty crosswind causes
      no problems, though some tail dragger experience is useful to produce a
      good landing on a concrete runway (and to keep the aircraft there
      afterwards!) For new Silence pilots, I would recommend making your first
      few landings on a more forgiving grass strip. The rudder has to be used
      carefully during the ground run the separate toe-operated hydraulic disc
      brakes are easy to use and quite powerful. As the main undercarriage is
      well in front of the C of G, the risk of nosing over is relatively low.
      As a single seater of the upper micro light
      class, the Silence is not for everyone, and it does require the pilot to
      have a certain level of tail dragger experience. Flying it is enormous fun
      as it offers a high level of performance combined with excellent safety
      features. The Mid West 'Harrier' single disc rotary engine suits its slim
      appearance, though it consumes a relatively large amount of fuel and is
      not the smoothest of engines, particularly at low rpm. With this in mind,
      Silence Aircraft is considering equipping the aircraft with the 75hp
      Walther Minor IIIB air-cooled in-line four cylinder engine. Used as a
      micro light, the Silence's operational range is fairly limited by the
      definition of this aircraft category however strengthened versions
      certified in the 'Experimental' category, built at home from a
      pre-fabricated kit, may be used for aerobatics and show the full range of
      this design's abilities. The great interest that these first 'little
      Spitfires' attracted whenever they appeared demonstrates clearly that a
      large market is out there waiting for the Silence!
      On reaching 2,500ft, the engine's three minutes
      of permitted full power operation up to 7,750rpm have passed, and the
      cooling liquid temperature comes close to its maximum. Reducing the power
      setting to the permanently permitted 7,100rpm and continuing climbing at
      70kts results in the temperatures staying in the green arc. Right Straight
      from the box the kit is well-produced and has the benefit of considerable
      prefabrication.





               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |

                        80 HP
                        JABIRU 2200

                        2.blade



                        GT propeller

                x

                x

                x

                x
                1


                        500





                        lb.
                x

                        880

                        lb


                        21 US







                        gal
                800 nm |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |

                x


                        1500 ft/min
                x

                        127
                kts
                x
                x |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                        135
                kts

                        196
                kts

                        41
                kts
                x |


            All specifications are based on manufacturer's
            calculations
   |
