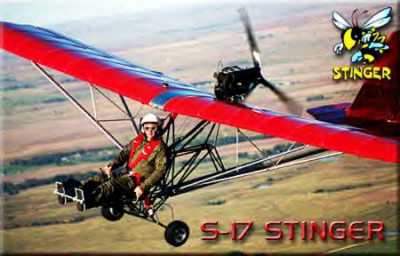

Rans S-17
Stinger
|
specifications |
42 HP |
47 HP |
|
Wing Span |
29.5 ft |
29.5 ft |
|
Area |
127sq ft |
127 sq ft |
|
Mean Chord |
4 ft 4 in |
4 ft 4in |
|
Aspect |
7:1 |
7:1 |
|
Length |
17 ft 4 in |
17 ft 4 in |
|
Height |
84 in |
84 in |
|
Cockpit Width |
N/A |
N/A |
|
Headroom |
40 in |
40 in |
|
Legroom |
41 in |
41 in |
|
Number of Seats |
1 |
1 |
|
Landing Gear |
F/TD |
F/TD |
|
Fuel Capacity |
5 gal US |
5 gal US |
|
powerplant |
447 |
503 |
|
Engine |
Rotax 447 |
Rotax 503 |
|
Output |
42 hp |
47 hp |
|
Propeller
Diameter |
68 in |
68 in |
|
Propeller Type |
IVO 3-Blade |
IVO 3-Blade |
|
Gear Reduction |
1:2.58 |
1:2.58 |
|
Fuel G.P.H |
3.75 gal @ 85% |
4.0 gal @ 85% |
|
performance |
|
|
|
Take Off Roll |
100 ft |
80 ft |
|
Rate of Climb |
900 fpm |
1100 fpm |
|
Service Ceiling |
12,500 ft |
13,000 ft |
|
Cruise |
55 mph |
60 mph |
|
VNE |
95 mph |
95 mph |
|
Stall |
28 mph |
28 mph |
|
Roll Rate |
70o
/ sec |
70o /
sec |
|
Glide Ratio |
6:1 |
6:1 |
|
Landing Roll |
100 ft |
100 ft |
|
Endurance |
1.3 hrs |
1.0 hrs |
|
Range |
71 miles |
60 miles |
|
weights |
|
|
|
Gross Weight |
527 lbs |
536 lbs |
|
Empty Weight* |
252 lbs |
261 lbs |
|
Useful Load |
275 lbs |
275 lbs |
|
Wing Loading |
4.1 lbs |
4.2 lbs |
|
Power Loading |
12.5 lbs |
11.4 lbs |
Limit Load Factors
|
+4-2
|
+4-2
|
*
Empty Weight will increase with addition of 5" wheels, brakes,
streamline struts, clear coat, and other equipment.
|
|
|
