            Storm Century











            Since its introduction in 1992, the
            Storm 300 series has become very popular with first-time pilots and
            low-time builders. The Storm 300 model is designed to achieve
            maximum performance and efficiency with the new generation engines:
            the six-cylinder Jabiru, the 80 or 100-hp Rotax 912S, and Subaru
            automotive conversions.

            The wing flaps keep the stall speed low for recreational pilots.

            The Storm Century has been configured to take full advantage of its
            increased useful load. New and larger wing tanks offer a larger fuel
            capacity (24 US Gal. per side) resulting in superior range and
            endurance, and the baggage area behind the seat has also been
            increased to the point that it is possible to install 2 jump seats
            for children. The baggage compartment has a high weight limit
            considering the size and class of this aircraft.

            The Storm 300 is a high performance two-place, low-wing, tractor
            sport plane. Design features include all-metal construction, fixed
            landing gear with steerable nose gear for the tricycle gear version.
            The Storm 300 is a true high performance airplane with the ability
            to make 750 mile cross country trips at cruise speed and 1000 miles
            for the Century version with standard wing tanks.

            An adequate supply of cool fresh air is available through forward
            inlets; this air can also be heated using an optional heater using
            either the exhaust muffler or a water radiator for engines such as
            the Rotax 912 series. The Rotax 912 Series is used in certified
            aircraft such as the Diamond Katana and has a high TBO of 1500 hours
            or more. It operates very well on automotive fuel and fuel burns are
            efficient.
            Using modern day airfoil technology, clean cabin lines, and
            non-complex systems, the Storm 300 and Storm Century exceed most
            other aircraft in their class – in efficiency, performance,
            build-time and simplicity. The Storm 300 performs best at both low
            and high altitudes. Piloting workload can be shared by two pilots
            owing to the dual controls, and the Storm 300 and Storm Century’s

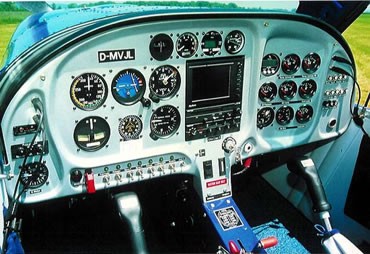

            incredible stability and spacious instrument panel make them
            excellent platforms for IFR flying. With extremely crisp controls
            and excellent stability and control, the Storm 300 and Storm Century
            allow you to fly long distances with minimal pilot fatigue, yet they
            will manoeuvre with the best of the two-seat sport planes. Once on
            the ground, the Storm 300 and Storm Century have the same docile
            ground handling characteristics.
            Making the best even better...

            Sleek, fast, safe and efficient...these are the words that describe
            the entire range of Storm 300 and Storm Century sport aircraft. The
            modern aerodynamic design of the Storm 300 and Storm Century means
            all outside surfaces are generating lift, providing fuel efficiency
            and stability. The Storm 300 and Storm Century are easy to build,
            easy to fly, true high performance airplane with the ability to make
            long cross country trips. No other aircraft in this class offers the
            quality, performance, stability, comfort, styling and superior
            design of the standard Storm 300 and Storm Century. The standard
            Storm 300 and Storm Century offer slightly faster cruise, top speed,
            and roll rate over that of the Storm 280. The Storm 300 and Storm
            Century kits are constructed with the finest quality materials
            available. The aluminium is supplied by leaders in the aerospace
            industry. Most of the hardware, metal, parts and components are
            either certified aircraft quality or of comparable quality . Because
            materials invested in the construction of your kit are so important,
            you simply get the BEST.

            The astonishing performance of the Storm 300 and Storm Century
            demonstrates the outstanding skills of the design and engineering
            team that collaborated to bring the aircraft to its present refined
            state. The use of the best materials, the latest design techniques
            and construction methods, together with rigorous quality control
            procedures, means that S.G.Aviation is setting the foundation for a
            new standard in the industry. With a choice of power plants from
            mild to wild the Storm 300 and Storm Century can be tailored to your
            distinctive taste. And wherever you are in the world you can always
            be sure of S.G.Aviation support. The Storm 300 and Storm Century
            offer a remarkable combination of speed and performance without
            compromising safety.





               specifications



                powerplant
                propeller
                length
                height
                wing span
                wing area
                seats
                empty weight

                useful load
                gross weight
                fuel capacity
                range |

                Jabiru, the 80
                or 100-hp Rotax 912S
                x

                      22.3 ft

                x

                      25.6 ft

                      107.4 sq. ft
                2

                      645 lbs
                UL
                x

                      990 lbs

                      26.4 gal

                      994 sm |



            performance





                takeoff distance,
                ground roll
                rate of climb
                max speed
                cruise speed
                landing distance, ground roll


                service ceiling |

                      295 ft

                x

                      178 mph

                      173 mph

                      394 ft
                x |



            limiting and recommended speeds




                design manoeuvring speed (Va)
                never exceed speed (Vne)
                stall, power off (Vsl)
                landing approach speed  |


                x

                      193 mph

                      38 mph
                x |


            All specifications are based on manufacturer's
            calculations
   |







             |



    |
