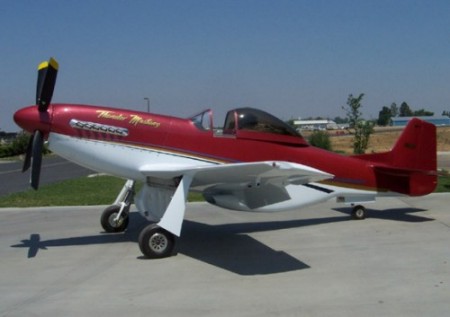

Thunder Mustang
Project launched by Dan Denney,
the designer of the Kitfox.
The company has long since closed its doors.
|
Powerplant |
Falconer V-12, 640hp |
Merlin V-1650-7, 1490hp
|
|
Displacement |
601 cubic inches |
1649 cubic inches |
|
Propeller |
MT 94" 4-blade constant speed |
Hamilton Standard 134" 4-blade |
|
Length |
24.2 ft. |
32.2 ft. |
|
Frontal Area |
8.1 sq. ft. |
13.4 sq.ft. |
|
Wing Span |
23.8 ft. |
37.0 ft. |
|
Wing Area |
104 sq. ft. |
237.75 sq.ft. |
|
Wing Loading |
28.84 lbs/sq.ft. |
49.2 lbs/sq.ft. |
|
Power Loading |
4.69 lbs/hp |
7.78 lbs/hp |
|
Gross Weight |
3200 lbs |
11600 lbs |
|
Empty Weight |
2200 lbs |
7635 lbs |
|
Useful Load |
1000 lbs |
3965 lbs |
|
Payload w/full Fuel |
400 lbs |
2885 lbs |
|
Basic Fuel Capacity |
102 gallons (in wings) |
180 gallons (in wings) |
|
Baggage Capacity |
50 lbs |
N/A |
|
Design Limit Load
Factor |
+9g @ 2600 lbs |
+7.3 g @ 3200 lbs |
+8g @ 8000 lbs |
+5.5 g @11600 lbs |
|
-6g @ 2600 lbs |
-4.9 g @ 3200 lbs. |
-4g @ 8000 lbs |
-2.8 g @11600 lbs |
Performance
|
|
Rate of Climb @ gross |
5200 ft/min |
2800 ft/min |
|
Maximum Level Speed @
Sea Level |
326 kts (375 mph) |
326 kts (375 mph)
|
|
380 kts (437mph @ 25000ft.) |
|
Cruise Speed @ 75%
Power |
300kts (340 mph) |
250 kts (300 mph) |
|
22-25 gph |
50-75 gph |
|
Range |
1300 naut. mi. |
700 naut. mi. |
|
Service Ceiling |
25,000 ft. |
46,000 ft. |
Limiting and
Recommended Airspeeds
|
|
Vx (best angle of
climb) |
87 kts |
87 kts |
|
Vy (best rate of climb) |
156 kts |
148 kts |
|
Va (design manoeuvring) |
222 kts |
226 kts |
|
Vfe (max flaps
extended) |
165 kts |
143 kts |
|
Vle (max landing gear
extended) |
148 kts |
148 kts |
|
Vne (never exceed) |
439 kts |
439 kts |
|
Vsl (stall, clean) |
77kts |
92 kts |
|
Vso (stall, in landing
config.) |
68 kts |
88 kts |
|
Best Glide |
153 kts |
152 kts |
|
|
|
