         In

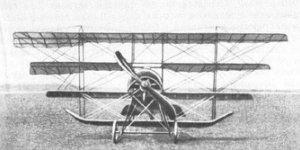

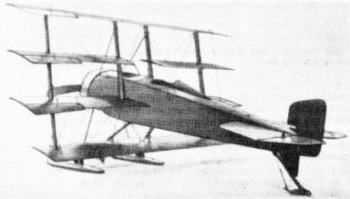

         1916 V.F.Saveljev and Vladislav Zalevskij built this experimental
         2-seat reconnaissance aircraft. It used fuselage from the "Morane-G"
         and single strut quadriplane wing box tilted forward. The Quadriplane
         was powered by an 80hp engine when it was flown on April 15, 1916.
         According to the testpilot Ungmejster, "The aircraft is very responsive
         and may compete with the 165hp Albatros, But it needs a 100hp
         Monosoupape engine." Later this engine was fitted with minor
         modifications, and aircraft performed numerous flights.



         Function: Reconnaissance
         Year: 1916
         Crew: 2
         Engines:
         Prototypes: 80hp Gnome or Clerget
         Production: 100hp Monosoupape
         Length: 6.0m / 6.0m
         Wingspan: 8.5m / 9.3m
         Wing area: 24.0m2 / 26.2m2
         Empty weight: 360kg / 400kg
         Loaded weight: 660kg / 700kg
         Wing load: 27.5kg/m2 / 26.7kg/m2
         Power load: 8.2kg/hp / 7.0kg/hp
         Maximum Speed: 116km/h / 132km/h
         Ceiling: more than 2000m
         Endurance: 3.0h / 3.0h  |
