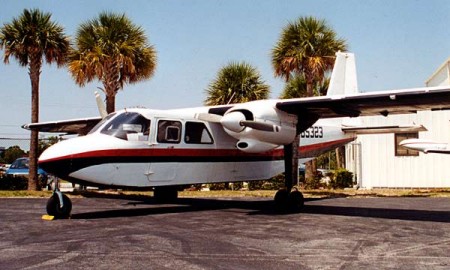

         Design of the Islander
         started in 1963 and the first prototype BN-2 first flew on 13 June
         1965, with the second prototype following on 20 August 1966. Both of
         these had engines that were less powerful than the production versions.
         The first production Islander first flew on 24 April 1967.

         An improved version, the BN-2A, first flew in 1969. It incorporated
         aerodynamic and flight equipment improvements as well as changes to the
         baggage arrangements.

         The Defender, a military version of the Islander, first flew on 20 May
         1970.

         In 1978 a further improved version, the BN-2B Islander II was
         introduced. Improvements included an increased carrying capacity and
         propeller modifications to reduce noise levels. Options that were
         available include a long-nosed version for increased baggage capacity,
         raked wingtip auxiliary fuel tanks and twin Allison 250-B17C turboprop
         engines. When the latter are installed the aircraft is designated as
         the designated the BN-2T.

         An attempt to develop an Islander with an even larger capacity resulted
         in the BN-2A Mk III Trislander. This aircraft has a stretched fuselage,
         modified landing gear and a third (tail-mounted) engine. The prototype
         was constructed from the original second BN-2 prototype and flew on 11
         September 1970.

         A number of other companies have also manufactured the Islander in
         addition to Britten-Norman. URMA from Romania has been building the
         aircraft since 1969, while a factory in Gosselies, Belgium has been
         building it since 1973. The aircraft has also been assembled in the
         Philippines.
         Capacity
         Passenger configuration: 8
         Cargo configuration: 700kg

         Performance
         Engines: 2 x 260 HP AVCO Lycoming
         Range: 435km
         Take off speed: 108kph
         Cruising speed and height: 241kph at 2,430m
         Landing speed: 93kph
         Fuel capacity: 354kg
         Max take off weight: 2993kg
         Flight deck crew: 1


         Technical Dimensions
         Length: 10.87m
         Wingspan: 16.15m
         Height: 3.9m
         Fuselage width: 1.09m
         Rear hold capacity: 120kg
         Rear hold door size: 0.46m x 0.76m
         Interior cabin dimensions in cargo config: 2.9m x 1.24m x 1.09m
   |
