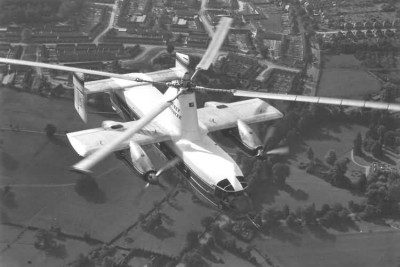

         The
         Fairey Rotodyne was a compound helicopter of unprecedented size at the
         time of it's first flight on 6 Nov. 1957, having originally been
         ordered by the then British Ministry of Supply, later the ministry of
         Aviation, in August of 1953.

         A development of the earlier Fairey Gyrodyne prototypes, which had
         established a number of British helicopter records, the Rotodyne
         featured a large rotor powered by air bled from two wingtip mounted
         Napier Eland turboprops, using the rotor for vertical take-offs,
         landings and hovering, while full power was applied to the tractor
         propellers of the turbo props for forward flight.
         The
         first flight using the tractor propellers was on 10 April 1958, while
         on January 5th 1959, the Rotodyne established a helicopter speed record
         over a closed circuit of 307 km/h. The prototype Rotodyne was a
         three-crew, forty-passenger machine, itself a remarkable achievement
         for it's day but on the acquisition of Fairey, Westland Aircraft
         proposed to develop the Rotodyne into a production aircraft capable of
         carrying between 57 and 75 passengers and using two of the new 5,250
         shp Rolls-Royce Tyne turboprops to give a cruising speed of 370 km/h,
         and the ability to carry up to 6.700 Kgs of freight including
         standard-width British Army vehicles.

         However, an initial order for twelve production Rotodynes for the Royal
         Air Force did not materialize, and after initial interest from British
         European Airways, the state owned domestic service and European
         international airline, did not develop into a firm order, the project
         was abandoned in February 1962

         First Flight :
         November 6, 1957

         Engines: 2 * 2.800 hp Napier Eland NEL7
         Cruise Speed: 300 km/h
         Range: 700 km
         Weight: Max: 14.900 Kgs
         Rotor Span: 27.43 m
         Length: 17.88 m
         Height: 6.76 m
         Disc Area: 591 m2
          |
