         Developed as the YHC-14
         in 1958 due an US army 's request for a medium-size turbine powered
         helicopter, was soon cancelled on behalf of the biggest CH-47 Chinook
         of the same company.

         However, the US marines test a modified version, the Model 107M , that
         was soon accepted as the HRB-1 and with the normalization of 1961
         became in the CH-46

         A real workhorse of the US navy and marines since 1965, is primarily
         used to provide all-weather day or night assault transport of combat
         troops, supplies and equipment.

         It was intended to be replaced by the Bell/Boeing V-22 Osprey.

         The model 107 was built with license in Japan by Kawasaki as the KV-107
         and is also used in Canada as CH-113 Labrador / Voyageur and Sweden as
         HKP-4

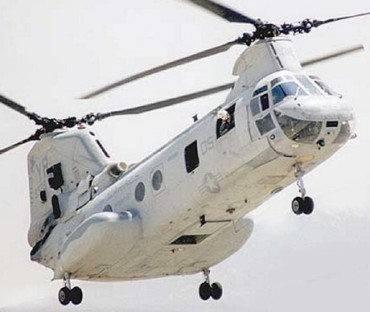

         US marine's CH-46 assault helo

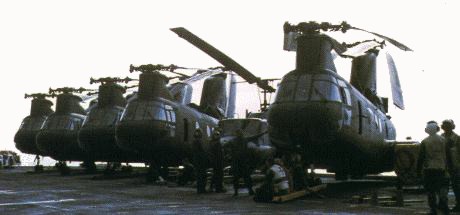

         Note the size of the Bell 212 (UH-1N) between the Sea Knights

         Functions:
         Assault / Cargo / SAR
         First Flight : April 22, 1958
         Crew / Load: 2 up to 28 (Depending the mission)

         CH-46D :
         Engines: 2 * 1400 shp General Electric T58-GE-10
         Speed: 248 km/h -- Max: 260
         Range: 380 km
         Weight: Empty: 5827 kg -- Max: 10433
         Rotor Span: 15.54 m
         Length: 25.40 m
         Height: 5.09 m
         Disc Area: 379.56 m2
         Cabin Section: 7.5 m(24 feet) long, 1.8 m (6 feet) wide, 1.8 m
         (6 feet) high
   |
