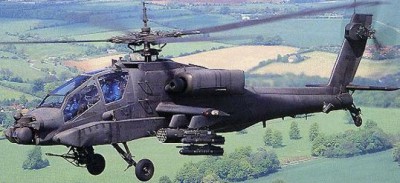

In 1973, the Hughes
         Model 77 was selected as the winner of the US Army's advanced attack
         helicopter ( AAH ) competition against the Bell 409 ( YAH-63 ).

         The prototype made its
         first flight in 1975 as the YAH-64 , and in 1976 the company received a
         full-scale development contract. In 1982 the Army gave the program, now
         known as AH-64A Apache , production go-ahead. Deliveries of production
         Apaches began in 1984.

         The AH-64D Longbow
         Apache designation was applied to near 600 upgraded AH-64A with 2 x
         1800 hp T700-GE-701 turboshafts engines , the Westinghouse Longbow
         radar system for automatic detection and classification of targets and
         all weather fire-and-forget type weapons.
         The Apache was also
         exported to Israel, Egypt, Greece, the Netherlands, Saudi Arabia,
         United Arab Emirates and the United Kingdom ( as WAH-64 to be assembly
         by Westland )




           First Flight :
           September 30,
           1975
           Crew : 2

           AH-64A :
           Mission: Attack Helicopter
           Engines: 2 * 1536 hp General Electric T700-700 Turbine engines

           Top Speed: 309 km/h
           Range: 610 km -- Max: 1804 Km
           Weight: Empty: 4657 kg -- Max: 8006
           Rotor Span: 14.63 m
           Length: 14.97 m
           Height: 4.22 m
           Disc Area: 168.11 m2
  |


          |
