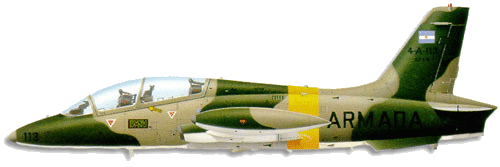

Aermacchi M.B.339A
|
Origin: |
Italy |
|
Type: |
basic/advanced
trainer and close-support aircraft |
|
Max Speed: |
485 kt / 559
mph |
|
Max Range |
593 km / 368
miles |
|
Dimensions: |
span 10.858 m
/ 35 ft 7.5 in
length 10.97 m / 36 ft 0 in
height 3.99 m / 13 ft 0 in |
|
Weight: |
empty 3125 kg
/ 6,889 lb maximum take-off 5895 kg / 13,000 lb |
|
Powerplant: |
one 1,814-kg
(4,000-lb) dry thrust Piaggio (Rolls-Royce) Viper 632-43 turbojet |
|
Armament: |
provision for
up to 1,814 kg (4,000 lb) of stores carried on six underwing
hardpoints; the two inboard points can each carry a 30-mm cannon or 7
62-mm (0.3-in) multi-barrel Minigun in a Macchi pod, and the two
centre points are 'wet' for the carriage of drop tanks; a wide variety
of weapon loads includes bombs, napalm, AS.11/AS.12 or Magic missiles,
rocket launchers, and a single four-camera reconnaissance pod |
|
|
