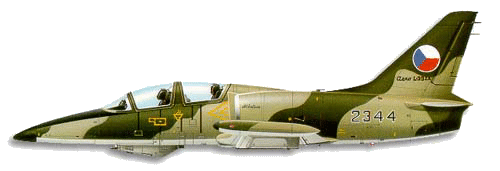

AERO L-39 Albatros
|
Origin: |
Czechoslovakia |
|
Type: |
light attack
and weapons training aircraft |
|
Max Speed: |
340 kt / 391
mph |
|
Max Range |
1100 km / 683
miles |
|
Dimensions: |
span 9.46 m /
31 ft 0.4 in
length 12.13 m / 39 ft 9.6 in
height 4.77 m / 15 ft 7.8 in |
|
Weight: |
empty 3565 kg
/ 7,859 Ib
max. take-off 5600 kg / 12,346 Ib |
|
Powerplant: |
one 1720-kg
(3,792-lb) dry thrust Ivchyenko AI-25TL turbofan |
|
Armament: |
one 23-mm
GSh-23L two-barrel cannon with 150 rounds, and provision for up to
1100 kg (2,425 Ib) of weapons on four underwing hardpoints, including
bombs of up to 500 kg (1,102 Ib), rocket and gun pods, or two drop
tanks |
|
|
