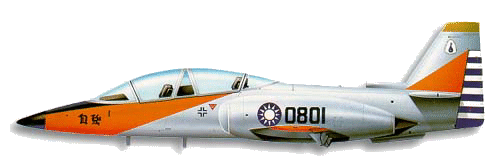

AIDC AT-3 Tzu-chung
|
Origin: |
Taiwan |
|
Type: |
advanced
flying and weapons trainer |
|
Max Speed: |
488 kt / 562
mph |
|
Max Range |
2,280 km /
1,417 miles |
|
Dimensions: |
span 10.46 m /
34 ft 3.75 in
length 12.90 m /42 ft 4 in
height 4.36 m / 14 ft 3.75 in |
|
Weight: |
empty 3,855 kg
/ 8,500 lb
maximum take-off 7,940 kg / 17,505 lb |
|
Powerplant: |
two 1588-kg
(3,500-lb) dry thrust Garrett TFE731-2-2L turbofans |
|
Armament: |
provision for
two 12.7 mm (0.5 in) machine-guns in a ventral pack and for up to 2720
kg (5,998 lb) of disposable stores carried on seven external
hardpoints; typical weapons are two AIM-9 Sidewinder AAMs on wingtip
rails, ASMs, cannon and machine-gun pods, rocket-launchers pods, and
free-fall bombs of the unitary and cluster types |
|
|
