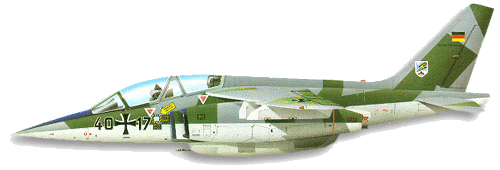

Dornier Alpha Jet
|
Origin: |
Germany /
France |
|
Type: |
Light attack
aircraft with weapons training capability |
|
Max Speed: |
539 kt / 621
mph |
|
Max Range |
583 km / 363
miles |
|
Dimensions: |
span 9.11 m /
29ft 10.75 in
length 13.23 m / 43 ft 4.9 in including probe
height 4.19 m / 13 ft 9 in |
|
Weight: |
3515 kg /
7,749 Ib maximum take-off 8000kg / 17,637 Ib |
|
Powerplant: |
Two 1350 kg /
2,976-lb dry thrust SNECMA/Turbomeca Larzac 04-C6 turbofans |
|
Armament: |
one 27-mm
IWKA-Mauser cannon, plus provision for up to 2500 kg (5,511 Ib) of
external stores on five attachment points, and including Hunting BL755
CBUs |
|
|
