      Northrop T-38A Talon



      In the mid-1950s, the USAF
      required a trainer with higher performance than the T-33 to better prepare
      student pilots for the latest tactical aircraft that were then coming into
      service. The aircraft chosen was the T-38A which offered high performance
      with low maintenance and operating costs. The T-38A became the USAF's
      first supersonic trainer. The T-38A prototype first flew on 10 April,
      1959, and production continued until 1972. A total of 1,189 T-38As were
      built. Some were later modified into AT-38Bs with external armament for
      weapons training purposes.
      Jacqueline Cochran set
      eight performance records in the fall of 1961 flying a production T-38A
      and in February 1962 a T-38A set four international time-to-climb records.
      The USAF Thunderbirds used T-38As from 1974 to 1982 because of their
      economic operation and high performance. Other users of the T-38A include
      the U.S. Navy in their Top Gun combat simulation program and the National

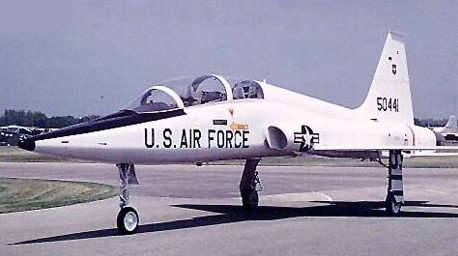

      Aeronautics and Space Administration (NASA). The aircraft on display is
      painted and marked as a trainer in the USAF Air Training Command.

      SPECIFICATIONS

      Span: 25 ft. 3 in.
      Length: 46 ft. 4 1/2 in.
      Height: 12 ft. 10 1/2 in.
      Weight: 11,761 lbs. loaded
      Armament: None
      Engines: Two General Electric J85-GE-5A turbojets of 3,850 lbs.
      thrust each with afterburner
      Crew: Two
      Cost: $756,000
      Serial Number: 65-10441
      PERFORMANCE

      Maximum speed: 812 mph.
      Cruising speed: 578 mph.
      Range: 1093 miles
      Service Ceiling: 45,000 ft.
           |
