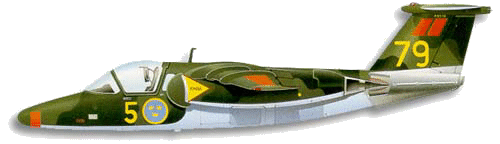

SAAB 105
|
Origin: |
Sweden |
|
Type: |
training/liaison aircraft with secondary attack capability |
|
Max Speed: |
415 kt / 478
mph |
|
Max Range |
1,400 km / 870
miles |
|
Dimensions: |
span 9.50 m /
31 ft 2 in
length 10.50 m / 34 ft 5.4 in
height 2.70 m / 8 ft 10.3 in |
|
Weight: |
empty 2,510 kg
/ 5,534 lb
maximum take-off 4,050 kg / 8,929 lb |
|
Powerplant: |
two 744-kg
(1,640-lb) dry thrust Turbomeca Aubisque turbofans |
|
Armament: |
provision for
700 kg (1,543 lb) of disposable stores, including two Saab Rb05 ASMs,
or two 30-mm cannon pods, or 12 135-mm (5.31-in) rockets, or bombs,
cluster bombs and rocket-launcher pods, on six external hardpoints |
|
|
