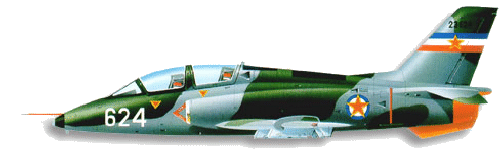

Soko G-4 Super Galeb
|
Origin: |
Yugoslavia |
|
Type: |
basic trainer/light attack
aircraft |
|
Max Speed: |
491 kt / 665
mph |
|
Max Range |
range 1900 km
/ 1,180 miles |
|
Dimensions: |
span 9.88 m /
32 ft 5 in
length including probe 12.25 m / 40 ft 2.25 in
height 4.30 m / 14 ft 1.25 in |
|
Weight: |
empty 3172 kg
/ 6,993 Ib maximum take-off 6300 kg / 13,889 Ib |
|
Powerplant: |
one 1814-kg
(4,000-lb) dry thrust Rolls Royce Viper Mk 632 turbojet |
|
Armament: |
provision for
one 23-mm GSh-23L two-barrel cannon with 200 rounds;provision for 2053
kg (4,526 Ib) of disposable stores, including AAMs, bombs, cluster
bombs, dispenser weapons, napalm tanks, large-calibre rockets,
rocket-launcher pods, drop tanks and ECM pods, carried on four
external hardpoints |
|
|
