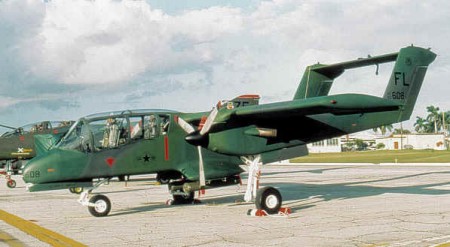

The OV-10 Bronco, a rugged, manoeuvrable, twin-turboprop, multimission aircraft, served with the U.S. Air Force and Marine Corps (OV-10A). The US Navy also used the OV-10. The Navy squadron VAL-4 "Black Ponies" flew them with much success in Vietnam. Internationally the OV-10 served with the military services of West Germany (OV-10B), Thailand (OV-10C), Venezuela (OV-10E), and Indonesia (OV-10F). Designed and built by North American at Columbus, Ohio, the Bronco complemented the performance requirements between jets and helicopters. Faster and more tactically versatile than helicopters, yet slower and more manoeuvrable than jets, the Bronco utilized tactics not possible with either.

The OV-10D night observation system (NOS) featured a unique night observation and target marking system that included forward-looking infrared (FLIR) and laser designator/ranger. With uprated 1040 SHP turboprop engines and fibreglass propellers, NOS provides greater range, improved performance and greater survivability.

In military operations, the Bronco's outstanding capability to find and hit battlefield targets close to friendly troops made this an aircraft effective against conventional and guerrilla forces. The effective application of the Bronco's versatility did not end with purely military functions, however. Civil action applications added significantly to the cost-effectiveness of this economical aircraft.

Military applications for which the Bronco was particularly suited include anti-guerrilla operations, helicopter escort, close air support, armed reconnaissance, and forward air control. In addition, it could be used for utility missions such as cargo paradrop, delivery of up to six paratroops, medical evacuation, smoke screening, and psychological warfare with leaflets and loudspeakers.

For peacetime operations, the guns, bomb racks, and armour could be removed quickly, and the aircraft became a high-performance STOL utility vehicle. Potential applications included aerial mapping, geological survey, spraying, disaster relief, and patrol work.

Ruggedness and simplicity of operation were emphasized in the design of the Bronco. The fuselage was mounted under the wing and provides tandem seating for pilot and observer. The canopy design afforded better visibility than that of most helicopters. Each crewman was equipped with an LW-3B ejection seat system, also designed and built at Columbus, which was capable of zero-speed, zero-altitude ejections.

Armor protection, a bullet-resistant windshield, and self-sealing fuel cells were provided for operations in a hostile environment. Twin engines, dual manual flight controls, and rugged and simple construction also contributed to survivability and safety.

The OV-10 was equipped with seven external store stations and four 7.62 mm guns installed in the sponsons. A variety of conventional ordnance could be delivered in addition to 2,000 rounds of ammunition. The seven external store stations consist of four sponson store stations, one centreline station, and two external wing stations. Sponson accessibility provided rapid loading of stores and ammunition. The wing stations could carry the LAU-7/A launcher for mounting either rocket packages or missiles. The centreline store station also had the capability of carrying either a 20 mm gun pod or a 150-, 230-, or 300-gallon (568-, 871-, or 1136-liter) external fuel tank.

Removal of the armament sponsons and the back seat with its associated armor enabled a quick and simple conversion to a civil action configuration, which permitted the carrying of 3,200 pounds (1,452 kilograms) of cargo in the aft fuselage.

For operation in remote areas, the Bronco had a specially designed rough field landing gear, required no ground equipment for starting, and could be maintained with simple handtools. In the event of an emergency, the Bronco could use high-octane or automotive fuel in place of jet fuel with only a slight degradation of power.

SPECIFICATIONS
Span: 40 ft.
Length: 41 ft. 7 in.
Height: 15 ft. 1 in.
Weight: 14,444 lbs. max.
Armament: Four M60C 7.62mm machine guns in fuselage sponsons, plus 3,600 lbs. of mixed ordnance or gun pods carried externally.
Engines: Two Garrett-AiResearch T76s (-G-10, left; -G-12 right) of 715 shaft hp. each
Cost: $480,000
