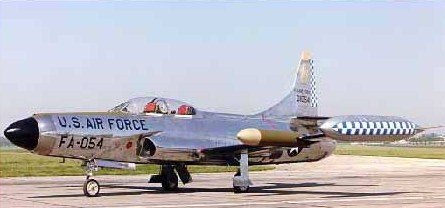

      Lockheed F-94C Starfire



      The F-94 series all-weather interceptors
      were developed from the Lockheed F-80 Shooting Star. The prototype F-94
      first flew on July 1, 1949. The Starfire was subsequently produced in the
      -A, -B, and -C series. The F-94C (originally designated the F-97A) was a
      fundamental redesign of the F-94B and made its first flight on January 18,
      1950.
      Improvements in the F-94C included a
      higher thrust engine, single point refuelling, a redesigned wing, a
      sweptback horizontal stabilizer, upgraded fire-control and navigation
      systems and, later, mid-wing rocket pods. Twenty-four rockets were carried
      in the nose in a ring around the radome, shielded by retractable doors,
      with an additional 24 in the wing pods, if installed. The F-94C carried no
      guns. Starfires were employed in the air defence of the Continental U.S.
      in the 1950s. In the F-94A form, they served as the first all-jet
      all-weather interceptor for the Air Defence Command. The last F-94Cs were
      withdrawn from USAF service in 1959.
      SPECIFICATIONS

      Span: 37 ft. 4 in.
      Length: 44 ft. 6 in.
      Height: 14 ft. 11 in.
      Weight: 24,000 lbs. loaded
      Armament: Twenty-four 2.75 in. Folding Fin Air Rockets (FFARs) in
      nose and twenty-four FFARs in two wing pods
      Engine: Pratt & Whitney J48-P-5 or -5A of 8,750 lbs. thrust with
      afterburner
      Crew: Two
      Cost: $534,000
      Serial Number: 50-980
      C/N: 880-8025
      Displayed As:50-1054
      PERFORMANCE

      Maximum speed: 640 mph.
      Cruising speed: 476 mph.
      Range: 1,275 miles
           |
