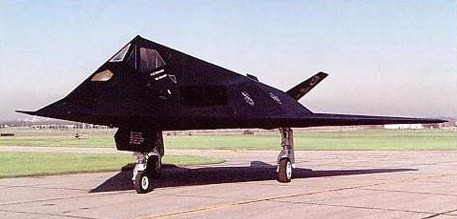

      Lockheed F-117A Nighthawk




      The Lockheed F-117A was developed in
      response to an Air Force request for an aircraft capable of attacking high
      value targets without being detected by hostile radar systems. By the
      1970s, special materials and techniques had become available to aircraft
      designers that would allow them to design an aircraft with radar-evading
      or "stealth" qualities. The result was the F-117A, the world's first
      operational aircraft that fully incorporated radar-evading techniques.

      The first F-117A flew on June 18, 1981
      and the first F-117A unit, the 4450th Tactical Group, achieved initial
      operating capability in October 1983. The 4450th was renamed the 37th
      Tactical Fighter Wing in October 1989. The F-117A was first used in combat
      during operation JUST CAUSE on December 19, 1989 when two F-117As from the
      37th TFW attacked military targets in Panama. The F-117A was again called
      into action during Operation DESERT SHIELD/STORM in 1990-91 when the 415th
      and the 416th squadrons of the 37th TFW moved to a base in Saudi Arabia.
      During Operation DESERT STORM the F-117As flew 1,271 sorties, achieving an
      80 percent mission success rate while suffering no losses or battle
      damage. A total of 64 F-117As were built between 1981 and 1990, 5 for
      testing and 59 for operational use .
      SPECIFICATIONS

      Span: 43 ft. 4 in.
      Length: 65 ft. 11 in.
      Height: 12 ft. 5 in.
      Weight: 52,500 lbs. max.
      Armament: Up to 4,000 lbs. of internal stores
      Engines: Two General Electric F404-F1D2 engines of 10,600 lbs.
      thrust ea.
      Crew: One
      Cost: $42,600,000
      PERFORMANCE

      Maximum speed: High subsonic
      Cruising speed: 684 mph.
      Range: Unlimited with aerial refuelling
      Service Ceiling: 45,000 ft.

          |
