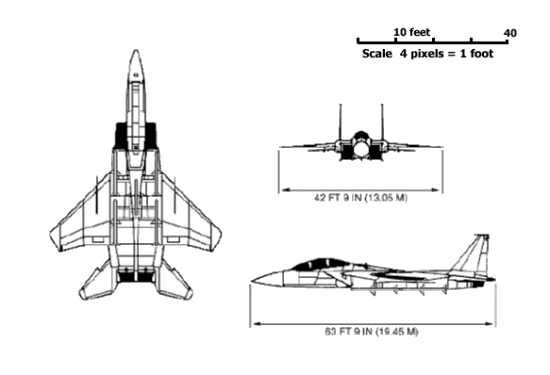

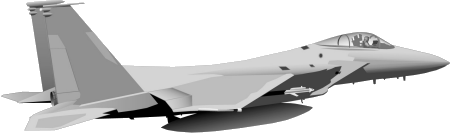

McDonnell F 15 Eagle

The F-15 Eagle is an all-weather, extremely manoeuvrable, tactical fighter designed to gain and maintain air superiority in aerial combat. The Eagle's air superiority is achieved through a mixture of manoeuvrability and acceleration, range, weapons and avionics. The F-15 has electronic systems and weaponry to detect, acquire, track and attack enemy aircraft while operating in friendly or enemy-controlled airspace. Its weapons and flight control systems are designed so one person can safely and effectively perform air-to-air combat. It can penetrate enemy defence and outperform and outfight current or projected enemy aircraft.

The APG-63 radar was developed over 20 years ago and has an average mean time between failure less than 15 hours. APG-63 LRUs have become increasingly difficult to support both in the field and at the depot. First, individual parts have become increasingly unavailable from any source; incorporating newer technology parts often entails module redesign and fails to address the root cause. Second, continuing reliability deterioration impacts both sustainment, particularly during deployment, as well as ACC’s ability to implement two-level maintenance. In addition, the APG-63 radar has virtually no remaining processing and memory capacity to accommodate software upgrades to counter evolving threats. The APG-63(V)1 radar has been designed for improved reliability and maintainability to address user requirements. The radar incorporates components designed for improved reliability and lower failure rates and enhanced diagnostics for improved fault detection and fault isolation. Along with other design features, these should improve radar reliability to 120 hours MTBM, an order of magnitude better than the existing APG-63.

The Fiber Optic Towed Decoy (FOTD) provides aircraft protection against modern radar-guided missiles to supplement traditional radar jamming equipment. The device is towed at varying distances behind the aircraft while transmitting a signal like that of a threat radar. The missile will detect and lock onto the decoy rather than on the aircraft. This is achieved by making the decoy’s radiated signal stronger than that of the aircraft.

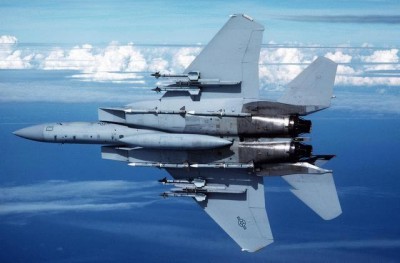

The Eagle can be armed with combinations of four different air-to-air weapons: AIM-7F/M Sparrow missiles or AIM-120 Advanced Medium Range Air-to-Air Missiles on its lower fuselage corners, AIM-9L/M Sidewinder or AIM-120 missiles on two pylons under the wings, and an internal 20mm Gatling gun (with 940 rounds of ammunition) in the right wing root.

The current AIM-9 missile does not have the capabilities demonstrated by foreign technologies, giving the F-15 a distinct disadvantage during IR dogfight scenarios. AIM-9X integration will once again put the F-15 in the air superiority position in all arenas. The F-15/AIM-9X weapon system is to consist of F-15 carriage of the AIM-9X missile on a LAU-128 Air-to-Air (A/A) launcher from existing AIM-9 certified stations. The AIM-9X will be an upgrade to the AIM-9L/M, incorporating increased missile manoeuvrability and allowing a high off-boresight targeting capability.

Low-drag, conformal fuel tanks were especially developed for the F-15C and D models. Conformal fuel tanks can be attached to the sides of the engine air intake trunks under each wing and are designed to the same load factors and airspeed limits as the basic aircraft. Each conformal fuel tank contains about 114 cubic feet of usable space. These tanks reduce the need for in-flight refuelling on global missions and increase time in the combat area. All external stations for munitions remain available with the tanks in use. AIM-7F/M Sparrow and AIM-120 missiles, moreover, can be attached to the corners of the conformal fuel tanks.

The F-15 Eagle began its life in the mid 1960s as the Fighter Experimental (FX) concept. Using lessons learned in Vietnam, the USAF sought to develop and procure a new, dedicated air superiority fighter. Such an aircraft was desperately needed, as no USAF aircraft design solely conceived as an air superiority fighter had become reality since the F-86 Sabre. The intervening twenty years saw a number of aircraft performing the air-to-air role as a small part of their overall mission, such as the primarily air-to-ground F-4 Phantom and the F-102, F-104 and F-106 interceptor designs. The result of the FX study was a requirement for a fighter design combining unparalleled manoeuvrability with state-of-the-art avionics and weaponry. An industry-wide competition ended on December 23, 1969 when McDonnell Douglas was awarded the contract for the F-15.

• The first F-15A flight was made on 27 July 1972, culminating one of the most successful aircraft development and procurement programs in Air Force history. After an accident-free test and evaluation period, the first aircraft was delivered to the Air Force on November 14, 1974. In January 1976, the first Eagle destined for a combat squadron was delivered to the 1st Tactical Fighter Wing at Langley Air Force Base, Va. Three hundred and sixty-five F-15As were built before production of the F-15C began in 1978. In January 1982, the 48th Fighter-Interceptor Squadron at Langley Air Force Base became the first Air Force air defence squadron to transition to the F-15. After twenty years of service, the F-15A has recently been reassigned from active duty Air Force fighter squadrons to Air National Guard units. The F-15A is flown by Air National Guard squadrons in the states of Oregon, Missouri, Georgia, Louisiana, Hawaii, and Massachusetts.
• The first flight of the two-seat F-15B (formerly TF-15A) trainer was made in July 1973. The first F-15B Eagle was delivered in November 1974 to the 58th Tactical Training Wing, Luke Air Force Base, Ariz., where pilot training was accomplished in both F-15A and B aircraft. The F-15B incorporates a tandem seating configuration, with a second crewmember position aft of the pilot's seat. The primary purpose of the F-15B is aircrew training, with an instructor pilot occupying the rear seat while an upgrading pilot mans the front seat controls. The rear seat pilot has a full set of flight controls and can fly the aircraft throughout the envelope, including takeoff and landing. Even though space is sacrificed to accommodate the second crew member, the F-15B retains the same warfighting capability as the F-15A. In keeping with the trainer concept, however, the rear seat is not equipped with controls for the combat avionics and weaponry. In fact, the rear seat is not a mandatory crew position, and F-15Bs are often flown with empty rear cockpits.
• The F-15C is an improved version of the original F-15A single-seat air superiority fighter. Additions incorporated in the F-15C include upgrades to avionics as well as increased internal fuel capacity and a higher allowable gross takeoff weight. The single-seat F-15C and two-seat F-15D models entered the Air Force inventory beginning in 1979. Kadena Air Base, Japan, received the first F-15C in September 1979. These new models have Production Eagle Package (PEP 2000) improvements, including 2,000 pounds (900 kilograms) of additional internal fuel, provision for carrying exterior conformal fuel tanks and increased maximum takeoff weight of up to 68,000 pounds (30,600 kilograms). Externally, the differences between the F-15A and F-15C are so slight as to make identification difficult; the only reliable indicator is the aircraft serial number. All F-15As have tail numbers starting with 73- through 77-, while F-15Cs have tail numbers beginning with 78- through 86-. The F-15C is the Air Force's primary air superiority fighter, serving with active duty units at Langley AFB, VA, Eglin AFB, FL, Mountain Home AFB, ID, Elmendorf AFB, AK, Tyndall AFB, FL, Nellis AFB, NV, Spangdahlem AB, Germany, Lakenheath AB, England and Kadena AB, Okinawa. The operational F-15C force structure is approximately 300 aircraft assigned to operational units. In the mid-1990s the F-15C experienced declining reliability indicators, primarily from three subsystems: radar, engines, and secondary structures. A complete retrofit of all three subsystems could be done for less than $3 billion.
• The F-15D is a two-seat variant of the single-place F-15C. The primary purpose of the F-15D is aircrew training, with an instructor pilot occupying the rear seat while an upgrading pilot mans the front seat controls.

 Although the slogan of the F-15's original design team was "Not a pound for air-to-ground," the F-15 has long been recognized as having superior potential in the ground attack role. In 1987 this potential was realized in the form of the F-15E Strike Eagle. The mission of the Strike Eagle is as succinct as that of its air-to-air cousin: to put bombs on target. The F-15E is especially configured for the deep strike mission, venturing far behind enemy lines to attack high value targets with a variety of munitions. The Strike Eagle accomplishes this mission by expanding on the capabilities of the air superiority F-15, adding a rear seat WSO (Weapon Systems Operator) crewmember and incorporating an entirely new suite of air-to-ground avionics.

Designed in the 1960s and built in the 1970s, the F-15A - D aircraft has now been in service for over twenty years. While the Eagle's aerodynamics and manoeuvrability are still on a par with newer aircraft, quantum leaps in integrated circuit technology have made the original F-15 avionics suite obsolete. The objective of the Multi-Stage Improvement Program (MSIP) was to set the Eagle in step with today's vastly improved information processing systems. Some F-15C/D aircraft (tail numbers 84-001 and higher) came off the assembly line with MSIP in place. All F-15A/B/C/D aircraft produced before 84-001 will receive the MSIP retrofit at the F-15 depot. Improvements incorporated via MSIP vary between F-15A/B and F-15C/D aircraft; the C/D MSIP has been completed. However, all air-to-air Eagles gain improved radar, central computer, weapons and fire control, and threat warning systems.

The purpose of the F-15 Multi-stage Improvement Program (MSIP) was to provide maximum air superiority in a dense hostile environment in the late 1990s and beyond. All total, 427 Eagles received the new avionics upgrades. Along with later model production aircraft, these retrofitted aircraft would provide the Combat Air Forces (CAF) with a total MSIP fleet of 526 aircraft. The MSIP upgraded the capabilities of the F-15 aircraft to included a MIL-STD-1760 aircraft/weapons standard electrical interface bus to provide the digital technology needed to support new and modern weapon systems like AMRAAM. The upgrade also incorporated a MIL-STD-1553 digital command/response time division data bus that would enable onboard systems to communicate and to work with each other. A new central computer with significantly improved processing speed and memory capacity upgraded the F-15 from 70s to 90s technology, adding capacity needed to support new radar and other systems. The original Eagle had less computer capacity than a 1990s car. Some of the work prefaced the addition of the Joint Tactical Information Distribution System, adding space, power, and cooling that would allow the new avionics to run in the harsh environments in which the Eagle operates. The new programmable armament control set (PACS) with a multi-purpose colour display (MPCD) for expanded weapons control, monitoring, and release capabilities featured a modern touch screen that allowed the pilot to talk to his weapons. A data transfer module (DTM) set provided pre-programmed information that customized the jet to fly the route the pilot had planned using mission planning computers. An upgrade to the APG-63 Radar for multiple target detection, improved electronic counter-countermeasures (ECCM) characteristics, and non-cooperative target recognition capability enabled the pilot to identify and target enemy aircraft before he was detected or before the enemy could employ his weapons. An upgrade of the advanced medium range air-to-air missile (AMRAAM), that carried up to eight missiles, represented an improvement that complimented the combat-proven AIM-7 Sparrow by giving the pilot capability to engage multiple targets to launch and leave, targeting and destroying enemy fighters before they could pose a threat. The upgraded Radar Warning Receiver (RWR) and an enhanced internal countermeasures set (ICS) on F-15C/D models improved threat detection and self-protection radar jamming capability that allowed pilots to react to threat and to manoeuvre to break the lock of enemy missiles.

Israel has bought F-15A, B, and D aircraft from USAF inventories and is currently obtaining an air-to-ground version called the F-15I. The two seat F-15I, known as the Thunder in Israel, incorporates new and unique weapons, avionics, electronic warfare, and communications capabilities that make it one of the most advanced F-15s. The F-15I, like the US Air Force's F-15E Strike Eagle, is a dual-role fighter that combines long-range interdiction with the Eagle's air superiority capabilities. All aircraft are to be configured with either the F100-PW-229 or F110-GE-129 engines by direct commercial sale; Night Vision Goggle compatible cockpits; an Elbit display and sight helmet (DASH) system; conformal fuel tanks; and the capability to employ the AIM-120, AIM-7, AIM-9, and a wide variety of air-to-surface munitions.

F-15 production, which began in 1972, has been extended into 1999 by orders F-151 aircraft for Israel. Israel selected the F-15I in January, 1994 after evaluating a variety of aircraft to meet its defence needs. The government of Israel initially ordered 25 F-15I Thunders, powered by two Pratt & Whitney F100-PW-229 low bypass turbofan engine. This foreign military sale was valued at $1.76 billion dollars. The Israeli Air Force received the first two of 25 F-15I aircraft in January 1998. On 22 September 1998 the US Department of Defence announced the sale to the Government of Israel of 30 F-15I aircraft; 30 AN/APG-70 or AN/APG-63(V)1 radar; and 30 each LANTIRN navigation and targeting pods. Associated support equipment, software development/integration, spares and repair parts, flight test instrumentation, publications and technical documentation, personnel training and training equipment, US Government and contractor technical and logistics personnel services, and other related requirements to ensure full program supportability will also be provided. The estimated cost was $2.5 billion.
