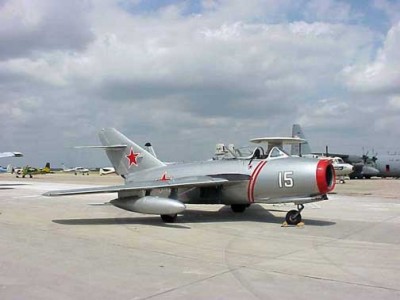

      MiG - 15 Fagot





      The Mikoyan-Gurevich MiG-15 was originally developed in the Soviet
      Union as an interceptor. The RD-45 turbojet powered it, which was a copy
      of the Rolls Royce Nene. Designed to shoot down heavy bombers, it carried
      one 37mm and two 23mm cannons. German experience in WWII had shown the
      need for cannons larger than 20 mm to bring down four-engine heavy
      bombers.
      The prototype MiG-15 first flew in December 1947. It began appearing in
      service in 1949 and by 1952 it had been provided to a number of Communist
      satellite nations, including North Korea where it was used extensively
      against United Nations forces. The MiG-15 was deployed against American
      Air Forces in December of 1950 in Korea. On November 8, 1950, 1st Lt.
      Russell Brown, flying an F-80, shot down a MiG-15 in the first all-jet
      dogfight in history. It was apparent, however, that the MiG-15 was
      superior to any aircraft then in the US inventory.
      Initial encounters with American aircraft led to the development of the
      MiG-15bis (improved). Its VK-1 engine had 1,000 lbs more thrust than the
      RD-45 engine of the earlier version, and had hydraulic ailerons. Although
      the MiG-15bis could climb faster and higher than the F-86, poor turning
      performance and high mach instability limited its dogfight performance. In
      aerial combat against the F-86, the MiG-15 suffered high losses, but
      against the B-29 it was very effective and prevented the heavy bombers
      from operating in daylight
      SPECIFICATIONS
      Span: 33 ft. 1 1/2 in.
      Length: 33 ft. 3 5/8 in.
      Height: 11 ft. 2 in.
      Weight: 11,270 lbs. max.
      Armament: Two 23mm cannons and one 37mm cannon, plus rockets or
      2,000 lbs. of bombs
      Engine: VK-1 of 6,000 lbs. thrust (copy of British Rolls-Royce "Nene"
      engine)
      Serial number: 2015357
      PERFORMANCE
      Maximum speed: 670 mph.
      Cruising speed: 525 mph.
      Range: 500 miles

          |
