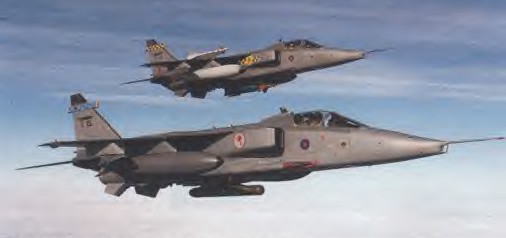

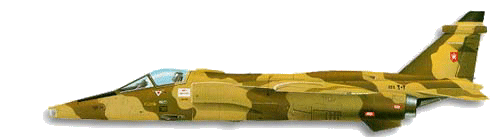

SEPECAT Jaguar
|
Origin: |
France and UK |
|
Type: |
single-seat tactical support aircraft |
|
Max Speed: |
917 kt / 1,056 mph |
|
Max Range |
537 km / 334 miles |
|
Dimensions: |
span 8.69 m / 28 ft 6.1 in
length 16.83 m / 55 ft 2.6 in
height 4.89 m / 16 ft 0.5 in |
|
Weight: |
empty 7,700 kg / 16,976 lb
max. take-off 15,700 kg /
34,613 lb |
|
Powerplant: |
two 3810-kg (8,400-lb) afterburning thrust Rolls-Royce/Turbomeca
Adour Mk 811 turbofans |
|
Armament: |
two 30-mm Aden Mk 4 cannon with 150 rounds per gun;
provision for 4763 kg / 10,500 Ib of disposable stores, including
Sidewinder or Magic AAMs, Exocet or Sea Eagle anti-ship missiles,
laser-guided bombs, bombs, cluster bombs, anti-airfield bombs,
rocket-launcher pads, napalm tanks, drop tanks and ECM pods, carried
on seven external hardpoints |
|
|
